Honeywell Washable Prefilter (Model 203372) Instruction Manual

1. Giriş

This manual provides essential instructions for the proper installation, operation, and maintenance of your Honeywell Washable Prefilter, Model 203372. This prefilter is designed to enhance the performance and longevity of your Honeywell F50 and F300 series electronic air cleaners. Please read these instructions carefully before use to ensure optimal performance and safety.

2. Məhsul bitdiview

The Honeywell Washable Prefilter (Model 203372) is a durable, reusable filter component for specific Honeywell electronic air cleaner models. Its primary function is to capture larger airborne particles before they reach the main filter, thereby extending the life and efficiency of the entire air purification system. This prefilter is constructed from metal and is designed for repeated cleaning.

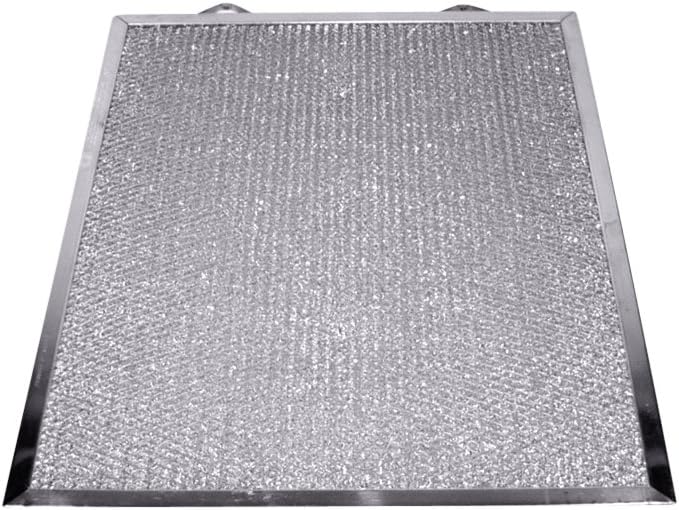

Şəkil 1: Honeywell Washable Prefilter, Model 203372. This image displays the rectangular metal mesh filter, designed for use in electronic air cleaner systems.

Uyğunluq: This prefilter is compatible with Honeywell F50 and F300 series electronic air cleaners. It can also be used with metal risers.

3. Quraşdırma

1. Söndürmək: Before attempting any installation or maintenance, ensure your electronic air cleaner unit is powered off and disconnected from its power source to prevent electrical hazards.
2. Locate Prefilter Guides: Open the access panel of your air cleaner and locate the upstream prefilter guides. These are typically slots or channels designed to hold the prefilter in place.
3. Insert Prefilter: Carefully slide the Honeywell Washable Prefilter (Model 203372) into the designated upstream prefilter guides. Ensure it is seated securely and correctly.
4. Giriş Panelini Bağlayın: Close and secure the air cleaner's access panel.
5. Gücü bərpa edin: Reconnect the power source and turn on your electronic air cleaner.

Əhəmiyyətli: Always ensure the prefilter is completely dry before installation. Installing a wet prefilter can lead to operational issues or damage.

4. Əməliyyat

Once installed, the washable prefilter operates continuously as part of your electronic air cleaner system. It works by trapping larger particles such as dust, lint, and pet dander, preventing them from clogging the finer filtration stages. Regular cleaning of the prefilter is crucial for maintaining the efficiency and performance of your air cleaner.

5. Baxım və Təmizləmə

Regular cleaning of your washable prefilter is essential for optimal air cleaner performance. The frequency of cleaning depends on usage and environmental conditions, but it is generally recommended to inspect and clean the prefilter every 1-3 months.

Təmizləmə proseduru:

1. Söndürün və çıxarın: Turn off and unplug the air cleaner. Carefully remove the prefilter from its guides.
2. Initial Cleaning Options:
   • Tozsoran: Use a vacuum cleaner with a brush attachment to remove loose dust and debris from both sides of the prefilter.
   • Fırçalama: Use a soft brush to gently dislodge accumulated particles.
3. Washing (Optional, for deeper cleaning):
   • Islatma: For stubborn dirt, soak the prefilter in a tub of warm, soapy water. Use a mild detergent if necessary.
   • Durulama: Bütün sabun qalıqları çıxarılana qədər təmiz su ilə yaxşıca yuyun.
4. Qurutma: After cleaning, allow the prefilter to air dry completely. This is critical. Do not reinstall a wet prefilter. Ensure all moisture has evaporated before placing it back into the air cleaner.
5. Yenidən quraşdırma: Once completely dry, slide the prefilter back into the upstream prefilter guides as described in the Installation section.

DO NOT wash the prefilter in a dishwasher or car wash, as this can damage the filter material or frame.

6. Giderme

If your electronic air cleaner's performance seems diminished, consider the following:

• Azaldılmış hava axını: A clogged prefilter can restrict airflow. Perform the cleaning procedure outlined in Section 5.
• Ineffective Filtration: Ensure the prefilter is correctly installed and fully dry. A misaligned or wet prefilter may not function optimally.
• Qeyri-adi səslər: Check that the prefilter is securely seated in its guides. A loose prefilter might vibrate.

For issues beyond prefilter maintenance, refer to the main instruction manual for your Honeywell F50 or F300 series electronic air cleaner.

7. Spesifikasiyalar

8. Zəmanət və Dəstək

For specific warranty information regarding your Honeywell Washable Prefilter (Model 203372), please refer to the documentation provided with your original Honeywell electronic air cleaner unit or visit the official Honeywell website. For technical support or further assistance, please contact Honeywell customer service.

You can find contact information and additional resources on the Honeywell official websayt.
