Giriş
This manual provides essential information for the safe and effective use of your Runseed XH2150-1500W AC Adapter. Please read these instructions carefully before using the product and retain them for future reference.

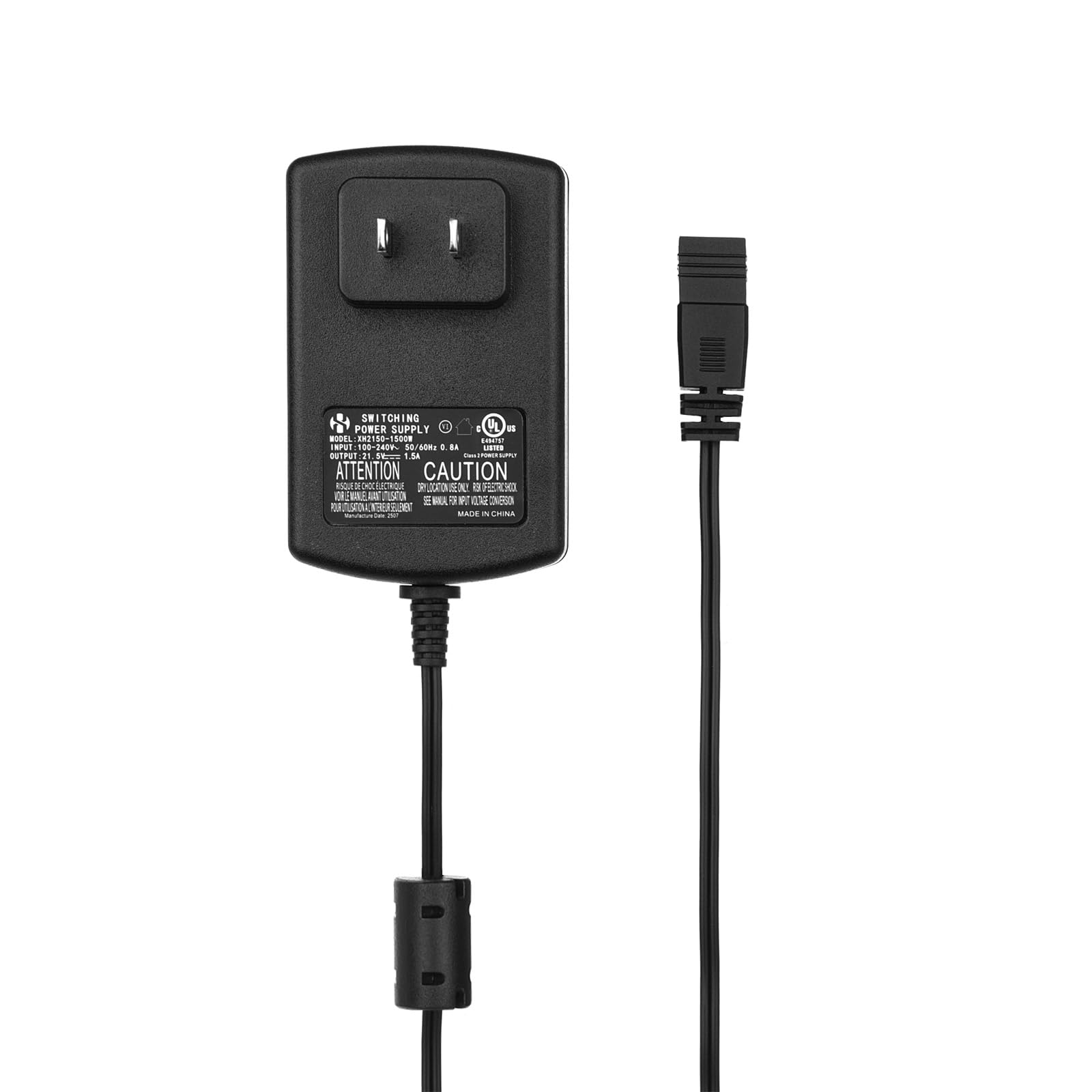

Image: The Runseed XH2150-1500W AC Adapter, a black power brick with an attached cable and connector.
Təhlükəsizlik Məlumatı
Təhlükəsiz işləməyi təmin etmək və zərərin qarşısını almaq üçün aşağıdakı ehtiyat tədbirlərinə əməl edin:
- Yalnız daxili istifadə: This charger is designed for indoor use. Do not expose it to water, rain, or high humidity.
- Düzgün Cildtage: Divardakı çıxışın həcmini təmin edintage matches the input requirements of the adapter (100-240V).
- Həddindən artıq yükləmədən çəkinin: Elektrik rozetkalarını və ya uzatma kabellərini həddindən artıq yükləməyin.
- Diqqətlə idarə edin: Do not drop, disassemble, or attempt to repair the adapter.
- İstifadə edilmədikdə əlaqəni kəsin: İstifadə edilmədikdə və ya elektrik fırtınaları zamanı adapteri elektrik rozetkasından ayırın.
- Havalandırma: Ensure adequate ventilation around the adapter during use to prevent overheating.
- Uşaqlar və ev heyvanları: Adapteri və kabeli uşaqların və ev heyvanlarının əli çatmayan yerdə saxlayın.
Image: Diagram illustrating the built-in safety protections of the AC adapter, including over-voltage, qısaqapanma, həddindən artıq cərəyan və həddindən artıq temperaturdan qorunma.
Məhsul Bitdiview
The Runseed XH2150-1500W AC Adapter is designed to provide reliable power for compatible handheld pool vacuum cleaners. It features a robust design with built-in safety mechanisms.
Əsas Xüsusiyyətlər:
- UL Listed for safety.
- Built-in protection against overcharging, short circuit, and overheating.
- Durable PVC material cable.
- Anti-interference magnetic ring.
Image: Close-up of the AC adapter highlighting its UL certification, the dedicated charging port (B Type connector), and the high-quality PVC cable.
Spesifikasiyalar
Refer to the following table for detailed product specifications:
| Xüsusiyyət | Detal |
|---|---|
| Model | XH2150-1500W |
| Giriş | 100-240V ~ 50/60Hz 0.8A |
| Çıxış | 21.5V ⎯ 1.5A |
| Çıxış Wattage | 32.25W |
| Bağlayıcı növü | B Tipi |
| Kabel uzunluğu | 5.9 fut (təxminən 1.8 metr) |
| Təhlükəsizlik Sertifikatı | UL Siyahıdadır |
| Uyğun Cihazlar | Teguy V40, ENHULK PCT403T, T403, PC10, PC15, PC18, PC20, EHT21001-L20, BIELMEIER CPV-2040 Handheld Pool Vacuum Cleaners |
Image: The AC adapter shown alongside a graphic detailing its product name, brand, input, output voltage, output current, output wattage, and DC connector type.
Image: A handheld pool vacuum cleaner displayed next to a list of compatible models, including PCT403T, Teguy V40, ENHULK PCT403T, ENHULK T403, and ENHULK EHT21001-L20.
Quraşdırma
AC adapterinizi qurmaq üçün bu addımları izləyin:
- Adapteri yoxlayın: Before first use, visually inspect the adapter and cable for any signs of damage. Do not use if damaged.
- Cihaza qoşulun: Insert the B Type connector of the adapter cable into the charging port of your compatible handheld pool vacuum cleaner. Ensure a secure connection.
- Elektrik rozetkasına qoşulun: Plug the AC adapter into a standard 100-240V wall outlet.
Image: An illustration showing the AC adapter plugged into a wall outlet and connected to a handheld pool vacuum cleaner, indicating the charging process.
Əməliyyat Təlimatları
The adapter is designed for straightforward operation:
- Doldurma Göstərişi: When the adapter is connected and charging, the indicator light on the adapter will typically illuminate qırmızı.
- Tam doldurulma göstəricisi: Once the connected device is fully charged, the indicator light will change to yaşıl.
- Doldurma müddəti: Charging times may vary depending on the device's battery level and capacity.
- Bağlantı kəsilir: After the device is fully charged, unplug the adapter from the wall outlet first, then disconnect it from the device.
Image: A close-up of the AC adapter showing the indicator light. A red light signifies "Charging," and a green light signifies "Fully Charged."
Video: An official product video demonstrating the Runseed Charger for Handheld Pool Vacuum Cleaner, showing its connection and basic operation.
Baxım
Proper maintenance ensures the longevity of your adapter:
- Təmizləmə: Disconnect the adapter from the power source and the device before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or abrasive materials.
- Yaddaş: Store the adapter in a cool, dry place away from direct sunlight and extreme temperatures. Avoid wrapping the cable too tightly around the adapter.
- Kabel Baxımı: Kabeli həddindən artıq əyməyin və ya sıxmayın. Kabelin üzərinə ağır əşyalar qoymaqdan çəkinin.
Problemlərin aradan qaldırılması
If you encounter issues with your AC adapter, refer to the following common problems and solutions:
| Problem | Mümkün Səbəb | Həll |
|---|---|---|
| Adapter cihazı doldurmur. | Not plugged in correctly; faulty outlet; incompatible device; damaged adapter/cable. | Ensure both ends of the adapter are securely plugged in. Try a different wall outlet. Verify device compatibility. Inspect adapter and cable for damage. |
| Indicator light not illuminating. | No power to adapter; adapter malfunction. | Check power connection and wall outlet. If connections are secure and outlet works, the adapter may be faulty. |
| Adapter gets excessively hot. | Poor ventilation; internal fault. | Ensure the adapter has adequate airflow. Discontinue use if it becomes too hot to touch and contact support. |
Zəmanət və Dəstək
This Runseed AC Adapter comes with a 1 İl İstehsalçı Zəmanəti. For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official Runseed websayt.
Please have your model number (XH2150-1500W) and purchase details ready when contacting support.
