Pit Boss 3-Series WiFi & Bluetooth Digital Vertical Smoker Instruction Manual

Giriş

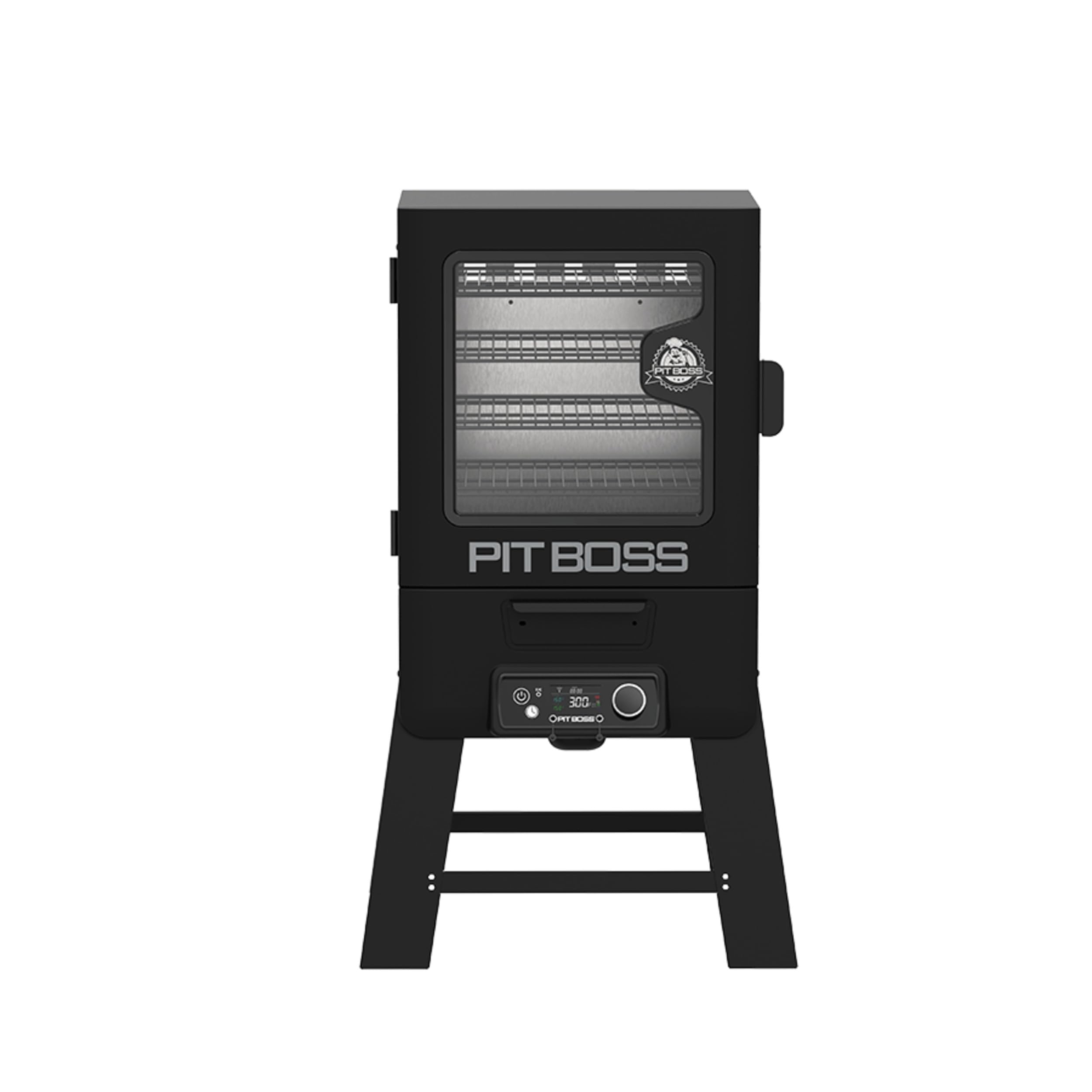

This manual provides instructions for the safe and efficient operation and maintenance of your Pit Boss 3-Series WiFi & Bluetooth Digital Vertical Smoker. This electric vertical smoker features 880 square inches of cooking space, four porcelain-coated adjustable racks, and a temperature range of 100°F to 300°F. It includes Wi-Fi and Bluetooth connectivity for remote monitoring and control, a meat probe, and a front-loading wood chip tray.

Təhlükəsizlik Məlumatı

Always read and understand all safety warnings and instructions before operating this appliance. Failure to follow these instructions may result in property damage, personal injury, or death.

• For outdoor use only. Do not operate indoors.
• Maintain a minimum distance of 10 feet from combustible materials.
• İş zamanı uşaqları və ev heyvanlarını siqaret çəkəndən uzaq tutun.
• İsti səthlərlə işləyərkən istiliyədavamlı əlcəklərdən istifadə edin.
• Ensure the smoker is placed on a level, stable, non-combustible surface.
• Always unplug the smoker before cleaning or servicing.

Quraşdırma

Before first use, ensure all packaging materials are removed. Assemble any components as instructed in the separate assembly guide.

1. Place the smoker on a stable, level, non-combustible surface outdoors.
2. Ensure adequate clearance from walls and other objects.
3. Siqaret çəkəni torpaqlanmış elektrik rozetkasına qoşun.
4. Perform an initial burn-off cycle to remove manufacturing oils and odors. Refer to the "Initial Burn-Off" section for detailed steps.

Əməliyyat Təlimatları

İlkin Yanma

Before cooking food, perform an initial burn-off to season the smoker and remove any manufacturing residues.

1. Load the wood chip tray with a small amount of wood chips (approximately 1/2 cup).
2. Close the smoker door.
3. Turn on the smoker and set the temperature to 300°F (149°C).
4. Allow the smoker to run for 30-60 minutes.
5. Siqaret çəkən cihazı söndürün və tamamilə soyumağa qoyun.

Rəqəmsal Nəzarətçidən İstifadə

The smoker is equipped with an LCD digital controller for precise temperature management.

• Power Button: Press to turn the smoker on or off.
• Temperature Control Dial: Rotate to adjust the desired cooking temperature (100°F to 300°F). Press to confirm selection.
• Wi-Fi/Bluetooth Indicators: Show connection status to the Pit Boss app.
• Meat Probe Ports: Connect the included meat probe to monitor internal food temperature.

Wi-Fi və Bluetooth bağlantısı

Connect your smoker to the Pit Boss app on your smartphone for remote monitoring and control.

1. Download the Pit Boss Grills app from your device's app store.
2. Follow the in-app instructions to pair your smoker via Wi-Fi or Bluetooth.
3. Once connected, you can monitor temperatures, adjust settings, and access recipes remotely.

Loading Wood Chips

The front-loading wood chip tray allows for easy addition of wood chips or pellets to enhance smoke flavor.

• Open the front-loading chip tray cover.
• Fill the tray with your desired wood chips or pellets. Do not overfill.
• Close the tray cover securely.
• Replenish chips as needed during the smoking process to maintain desired smoke levels.

Ət Zondundan istifadə

The included meat probe allows for accurate monitoring of internal food temperatures.

1. Insert the probe into the thickest part of the meat, avoiding bone.
2. Plug the probe into one of the designated ports on the digital controller.
3. Monitor the internal temperature on the LCD display or via the Pit Boss app.

Baxım

Təmizləmə

Regular cleaning ensures optimal performance and extends the life of your smoker. Always allow the smoker to cool completely and unplug it before cleaning.

• Bişirmə Rəfləri: The four porcelain-coated adjustable racks should be cleaned after each use. Use a grill brush or warm soapy water.
• Yağ qabı: The removable grease cup and tray should be emptied and cleaned regularly to prevent grease fires.
• Daxili: Daxili səthləri reklamla silinamp İnadkar qalıqlar üçün aşındırıcı olmayan təmizləyicidən istifadə edin.
• Xarici: Xarici hissəni yumşaq bir parça və yumşaq bir yuyucu vasitə ilə təmizləyin.

Saxlama

When not in use, store the smoker in a dry, protected area. Consider using an all-weather fitted grill cover (sold separately) to protect it from the elements.

Problemlərin aradan qaldırılması

This section addresses common issues you might encounter with your Pit Boss Digital Vertical Smoker.

• Smoker Not Turning On:
  • Elektrik kabelinin torpaqlanmış rozetkaya etibarlı şəkildə qoşulduğundan əmin olun.
  • Elektrik kəsicisini yoxlayın.
• Temperatur Dəyişmələri:
  • Verify the smoker door is fully closed and sealed.
  • Ensure the wood chip tray is not overfilled, which can restrict airflow.
  • Check the back vents for any obstructions.
• No Smoke Production:
  • Ensure wood chips are loaded correctly and are not wet.
  • Verify the heating element is functioning.
• Wi-Fi/Bluetooth bağlantısı problemləri:
  • Ensure your smoker is within range of your Wi-Fi router or Bluetooth device.
  • Restart the smoker and your mobile device.
  • Check the Pit Boss app for updates.

Əlavə yardım üçün dəstək bölməsinə baxın və ya müştəri xidmətləri ilə əlaqə saxlayın.

Spesifikasiyalar

Zəmanət Məlumatı

The Pit Boss 3-Series WiFi & Bluetooth Digital Vertical Smoker is backed by a 3-year limited warranty.

This warranty covers defects in materials and workmanship under normal use. For full terms and conditions, please refer to the warranty card included with your product or visit the official Pit Boss websayt.

Dəstək

For technical assistance, replacement parts, or further inquiries, please contact Pit Boss customer support.

• Onlayn dəstək: Rəsmi Pit Boss-u ziyarət edin webTez-tez verilən suallar, problemlərin həlli təlimatları və əlaqə formaları üçün sayt.
• Telefon dəstəyi: Refer to your product packaging or the Pit Boss website for current customer service phone numbers.

Məhsul Videosu

Bu videoya birdəfəlik baxınview of the Pit Boss Pro Series smokers, which shares similar features with your 3-Series Digital Vertical Smoker.
