Generic Tine Bar Bearing Instruction Manual

Giriş

This manual provides essential information for the installation, maintenance, and specifications of the Generic Tine Bar Bearing, designed as a replacement part for Vermeer Side Delivery Hay Rake models R-21 and R-23. This bearing is identified by interchange part numbers TB7623 and 1738001. Proper installation and maintenance are crucial for the optimal performance and longevity of your hay rake.

Məhsul Bitdiview

The Tine Bar Bearing is a critical component in the tine bar assembly of Vermeer hay rakes, facilitating smooth rotation and operation of the tines. This replacement part ensures the continued efficient functioning of your agricultural equipment.

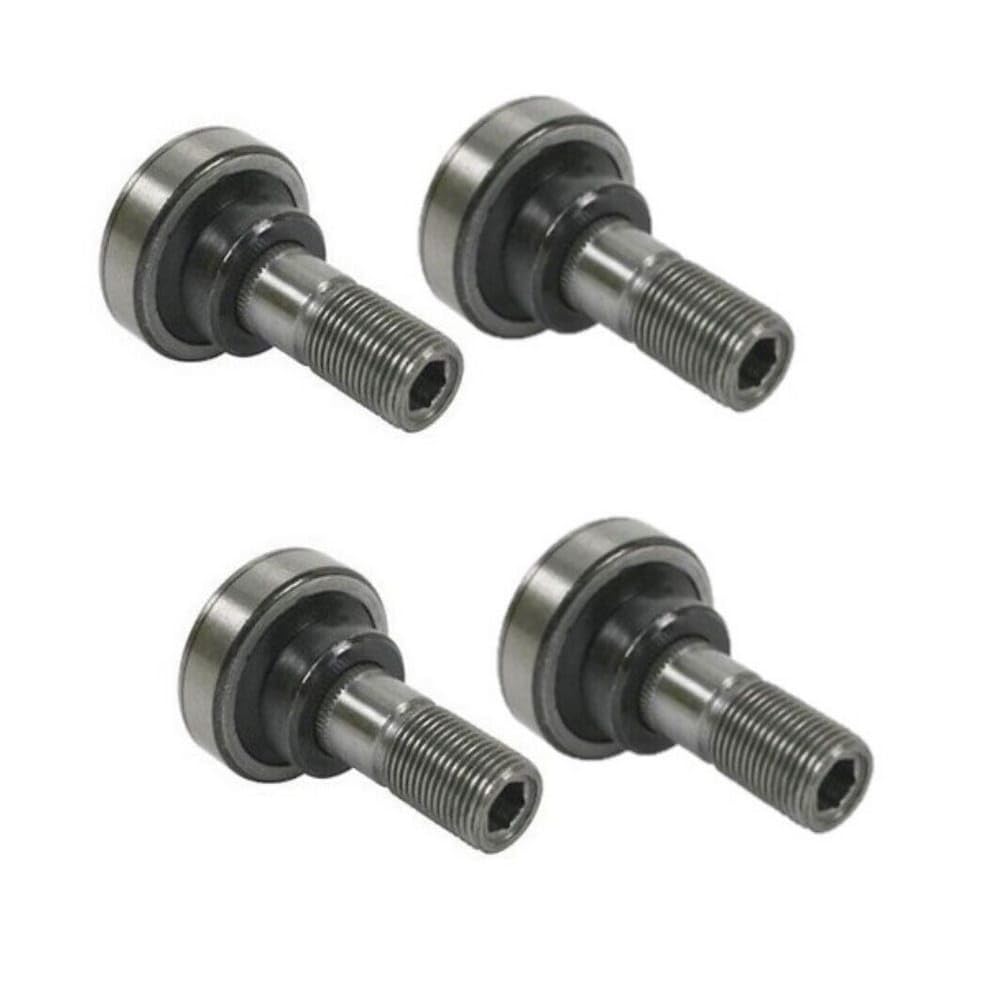

Şəkil 1: Generic Tine Bar Bearing. This image displays the cylindrical metal bearing, highlighting its robust construction suitable for agricultural machinery.

Quraşdırma Təlimatları

Əvvəlcə təhlükəsizlik: Before beginning any installation, ensure the hay rake is turned off, disengaged from any power source, and properly secured to prevent accidental movement. Wear appropriate personal protective equipment (PPE), including gloves and eye protection.

1. Identify the Bearing Location: Locate the worn or damaged tine bar bearing on your Vermeer R-21 or R-23 hay rake. Refer to your hay rake's original service manual for specific assembly diagrams if needed.
2. Köhnə Rulmanı Çıxarın: Carefully remove any retaining clips, bolts, or other fasteners securing the old bearing. Use appropriate tools (e.g., pullers, presses) to extract the old bearing without damaging surrounding components.
3. Mənzili təmizləyin: Thoroughly clean the bearing housing and shaft area. Remove any dirt, debris, rust, or old lubricant. A clean surface ensures proper seating and extends the life of the new bearing.
4. Komponentləri yoxlayın: Inspect the shaft, housing, and any associated components for wear, damage, or deformation. Replace any other worn parts as necessary.
5. Yeni rulman quraşdırın: Gently press or tap the new Generic Tine Bar Bearing into its housing. Ensure it is seated squarely and fully. Do not use excessive force or strike the bearing races directly, as this can cause damage. A bearing press or a soft-faced hammer with a suitable sleeve is recommended.
6. Secure the Bearing: Reinstall any retaining clips, bolts, or fasteners that were removed. Ensure all components are tightened to the manufacturer's specifications (refer to your hay rake's service manual).
7. Yağlayın (əgər varsa): If the bearing is designed for lubrication, apply the recommended grease or lubricant as specified by the hay rake manufacturer.
8. Test əməliyyatı: Manually rotate the tine bar assembly to ensure smooth movement and proper function before operating the hay rake under power.

Funksiya və əməliyyat

The Tine Bar Bearing facilitates the rotational movement of the tine bars within the hay rake mechanism. Its proper function is essential for the tines to effectively gather and move hay. Once installed correctly, the bearing operates continuously as part of the hay rake's normal function, requiring no direct user interaction during operation beyond routine maintenance.

Baxım

Regular maintenance extends the lifespan of the Tine Bar Bearing and ensures reliable operation of your hay rake.

• Daimi Yoxlama: Periodically inspect the bearings for signs of wear, such as excessive play, unusual noise, or visible damage. Check for any signs of lubricant leakage or contamination.
• Yağlama: If your hay rake's design includes grease fittings for the tine bar bearings, follow the manufacturer's recommended lubrication schedule and use the specified type of grease. Over-lubrication can be as detrimental as under-lubrication.
• Təmizləmə: Keep the area around the bearings clean and free from dirt, dust, crop debris, and moisture, which can accelerate wear and corrosion.
• Əvəzetmə: Replace bearings at the first sign of significant wear or damage to prevent further damage to the hay rake's components.

Problemlərin aradan qaldırılması

If you experience issues with your hay rake that you suspect are related to the tine bar bearings, consider the following:

• Unusual Noise (Grinding, Squealing): This often indicates a worn, damaged, or improperly lubricated bearing. Inspect the bearing for play and ensure it is adequately greased (if applicable).
• Excessive Play or Wobble in Tine Bar: A loose or worn bearing can cause the tine bar to wobble. This requires immediate inspection and likely replacement of the bearing.
• Həddindən artıq istiləşmə: Bearings can overheat due to insufficient lubrication, improper installation (e.g., too tight), or excessive load. Check lubrication and ensure the bearing rotates freely.
• Seizure: A seized bearing means it has completely failed and will prevent the tine bar from rotating. This necessitates immediate replacement.

For persistent issues, consult a qualified agricultural machinery technician or refer to your Vermeer hay rake's comprehensive service manual.
