1. Məhsul bitdiview
The Scosche I335 Hookup 3.5mm Auxiliary Audio Cable is designed to transmit audio signals between devices equipped with standard 3.5mm audio jacks. This 3-foot (approximately 0.91 meters) cable provides a reliable connection for various audio applications, including connecting portable media players to car stereos, home audio systems, or headphones.

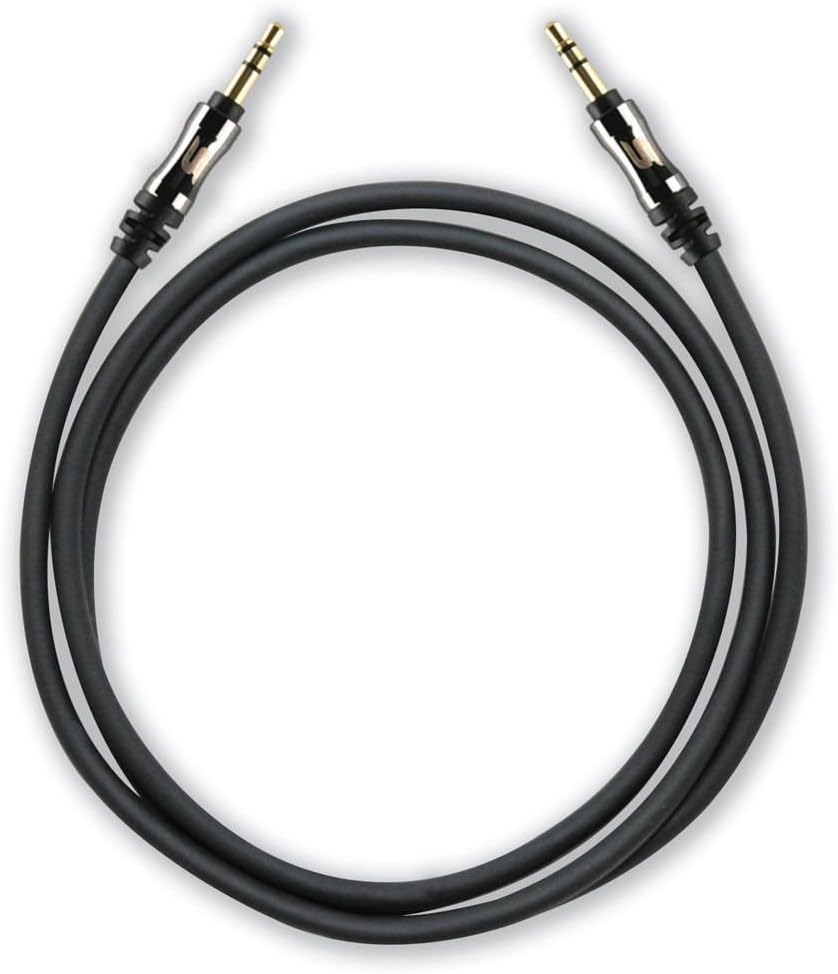

A coiled black 3-foot Scosche I335 auxiliary audio cable with gold-plated 3.5mm male connectors on both ends.
1.1 Paketin məzmunu
- 1 x Scosche I335 Hookup 3.5mm Auxiliary Audio Cable (3-foot, Black)
- 1 x Cable Extension Adapter
2. Quraşdırma və Bağlantı
2.1 Connecting the Auxiliary Cable
- Identify Audio Ports: Locate the 3.5mm audio output port on your source device (e.g., smartphone, MP3 player) and the 3.5mm audio input port on your destination device (e.g., car stereo, speaker system). These ports are typically labeled as 'AUX OUT', 'HEADPHONE', or 'AUX IN'.
- Connect Cable Ends: Insert one end of the Scosche I335 auxiliary cable into the 3.5mm audio output port of your source device.
- Təhlükəsiz Bağlantı: Insert the other end of the auxiliary cable into the 3.5mm audio input port of your destination device. Ensure both connectors are fully inserted for a secure connection.
This image displays a close-up of the 3.5mm audio jack, highlighting its design with integrated strain relief for enhanced durability and a secure connection.
2.2 Using the Extension Adapter
The included extension adapter allows for increased cable length or conversion of one male end to a female port, enabling connection to another 3.5mm male cable.
- Connect Cable to Adapter: Insert one male end of the Scosche I335 auxiliary cable into one end of the extension adapter.
- Connect Second Cable (Optional): If extending the cable, connect another 3.5mm male-to-male cable into the other end of the extension adapter.
- Cihaza qoşulun: Connect the remaining free end of the cable setup to your audio device.
The image shows the Scosche 3.5mm auxiliary cable connected to the included extension adapter, demonstrating how to extend the cable's reach or convert one end to a female port.
3. Əməliyyat Təlimatları
Once the auxiliary cable is securely connected between your audio source and destination devices:
- Daxiletmə seçin: On your destination device (e.g., car stereo, home receiver), select the 'AUX' or 'Line-In' input source. Refer to your device's manual for specific instructions on input selection.
- Audio çalın: Begin playing audio from your source device.
- Səs səviyyəsini tənzimləyin: Adjust the volume on both your source device and destination device to achieve the desired audio level. It is often recommended to set the source device's volume to about 75-80% of its maximum and then control the main volume from the destination device.
4. Baxım və qulluq
Proper care of your auxiliary cable will ensure its longevity and optimal performance:
- Kəskin əyilmələrdən çəkinin: Do not bend the cable sharply, especially near the connectors, as this can damage the internal wiring.
- Düzgün saxlama: İstifadə edilmədikdə, kabeli sərbəst şəkildə sarın və onu həddindən artıq temperaturdan uzaq, təmiz, quru yerdə saxlayın.
- Təmiz bağlayıcılar: If connectors appear dirty, gently wipe them with a dry, lint-free cloth. Avoid using liquids or abrasive cleaners.
- Diqqətlə idarə edin: Kabeli qoşduqda və ya ayırarkən kabelin özündən çəkmək əvəzinə həmişə birləşdirici korpusdan tutun.
5. Giderme
If you encounter issues with your Scosche I335 auxiliary cable, try the following solutions:
- Səs yoxdur:
- Kabelin hər iki ucunun müvafiq portlara tam daxil olduğundan əmin olun.
- Verify that the correct input source (AUX/Line-In) is selected on your destination device.
- Check the volume levels on both the source and destination devices.
- Test the cable with different devices to rule out an issue with the cable itself or the connected devices.
- Poor Sound Quality (Static, Distortion, Low Volume):
- Bütün bağlantıların təhlükəsiz və dağıntısız olduğundan əmin olun.
- Adjust the volume levels on both devices; sometimes setting the source volume too high or too low can cause distortion.
- Check if the cable is damaged (e.g., visible fraying, kinks).
- Ensure the cable is not running near strong electromagnetic interference sources.
- Kabel uyğun gəlmir:
- Confirm that both devices have standard 3.5mm audio jacks. This cable is not compatible with other jack sizes (e.g., 2.5mm, 6.35mm).
- If using a phone case, ensure it does not obstruct the 3.5mm port, preventing full insertion of the connector.
6. Spesifikasiyalar
| Xüsusiyyət | Detal |
|---|---|
| Brend | Scosche |
| Model nömrəsi | I335 |
| Bağlayıcı növü | Köməkçi (3.5 mm) |
| Kabel növü | AUX |
| Kabel uzunluğu | 3 fut (təxminən 0.91 metr) |
| Rəng | Qara |
| Bağlayıcı Cins | Kişidən Kişiyə |
| Forma | Dəyirmi |
| Uyğun Cihazlar | Any device with a 3.5mm female port |
| Xüsusi Xüsusiyyət | Extension adapter included |
| Maddə Çəkisi | 2.4 unsiya (təxminən 68 qram) |
| Məhsul Ölçüləri | 2.75 x 1.12 x 7 düym (qablaşdırma) |
7. Zəmanət və Müştəri Dəstəyi
7.1 Zəmanət Məlumatı
Scosche products are designed for quality and durability. For specific warranty terms and conditions applicable to your I335 Hookup 3.5mm Auxiliary Audio Cable, please refer to the official Scosche website or contact their customer support directly. Warranty periods may vary by product and region.
7.2 Müştəri dəstəyi
If you require further assistance, have questions about your product, or need to report an issue, please visit the official Scosche website for contact information, FAQs, and support resources. You can typically find support details under the 'Support' or 'Contact Us' sections of their websayt.
