CURT 55774 Dual-Output Vehicle-Side Trailer Wiring Connector

1. Giriş

The CURT 55774 Dual-Output Vehicle-Side Trailer Wiring Connector is an electrical device designed to simplify vehicle-to-trailer wiring. This connector eliminates the need for cutting, splicing, and soldering during installation. It is intended for vehicles equipped with a factory tow package and a USCAR socket, providing both a 4-way flat and a 7-way RV blade connector for versatile towing options. The unit includes a mounting bracket for secure installation and dust covers to protect connections when not in use.

Image 1.1: The CURT 55774 Dual-Output Vehicle-Side Trailer Wiring Connector, showing both 7-pin and 4-pin outputs.

2. Məhsulun xüsusiyyətləri

• Çox yönlü dizayn: Provides both a 4-way flat and a 7-way RV blade connector from a single USCAR socket connection.
• Havaya davamlı: The 7-pin socket features a spring-loaded dust cover to protect connection points from environmental elements when not in use.
• Etibarlı Bağlantı: Designed to plug directly into existing vehicle wiring via the factory USCAR socket, connecting taillights, brake lights, turn signals, reverse lights, electric trailer brakes, and auxiliary power.
• USCAR-Specific: Engineered for specific vehicles equipped with an industry-standard USCAR socket.
• Davamlı tikinti: Constructed from durable black plastic to ensure long-lasting use and resistance to rust or corrosion.

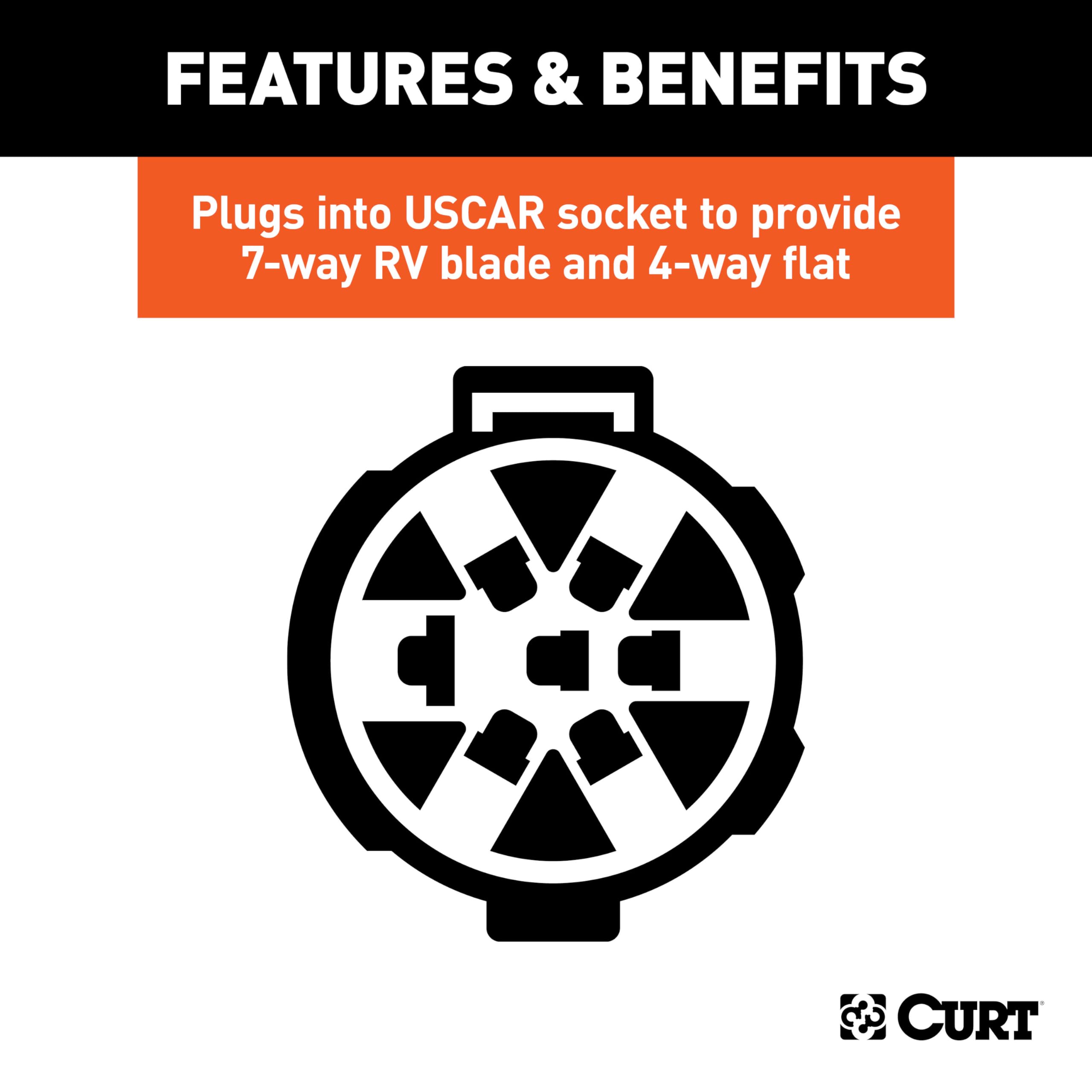

Image 2.1: Diagram illustrating the key features of the CURT 55774, including the USCAR socket connection, 7-way RV blade, 4-way flat, and metal mounting bracket.

3. Quraşdırma və Quraşdırma

The CURT 55774 connector is designed for a straightforward, plug-and-play installation on vehicles equipped with a factory tow package and a USCAR socket. Verify your vehicle's compatibility before beginning installation.

3.1 Komponentlər

• Dual-Output 7-Pin and 4-Pin Connector
• Quraşdırma mötərizəsi
• Montaj Avadanlıqları (vintlər, yuyucular, qoz-fındıq)

3.2 Quraşdırma addımları

1. Locate USCAR Socket: Identify the factory USCAR socket on your vehicle. This is typically found near the rear bumper or within the vehicle's existing tow package wiring.
2. Naqilləri birləşdirin: Plug the CURT 55774 wiring harness directly into the vehicle's USCAR socket. Ensure a secure and firm connection.
3. Montaj braketi: Attach the provided mounting bracket to a suitable location near the vehicle's hitch receiver. This may involve drilling pilot holes if not pre-existing.
4. Təhlükəsiz Konnektor: Mount the dual-output connector (7-pin and 4-pin) to the installed bracket using the supplied hardware. Ensure it is oriented correctly and securely fastened.
5. Test Bağlantıları: After installation, test all trailer light functions (taillights, brake lights, turn signals) and auxiliary power with a compatible trailer or trailer light tester.

Image 3.1: Illustration of connecting a trailer wiring harness to a vehicle's existing electrical system.

Şəkil 3.2: Ətraflı view of the 7-way RV blade connector, part of the dual-output unit.

Image 3.3: A close-up of a 4-way flat trailer wiring connection, demonstrating the standard output.

3.3 Quraşdırma Videosu

For a visual guide on T-connector installation, refer to the video below. While the specific model may vary, the general principles of connecting to a vehicle's wiring system are similar.

4. Əməliyyat

Once installed, the CURT 55774 provides convenient access to trailer wiring connections.

4.1 Connecting a Trailer

• For 7-Pin Trailers: Align the 7-pin plug from your trailer with the 7-way RV blade socket on the CURT 55774. Push firmly until it clicks into place. Ensure the spring-loaded cover is fully engaged to secure the connection.
• For 4-Pin Trailers: Align the 4-pin plug from your trailer with the 4-way flat socket on the CURT 55774. Push firmly to establish the electrical connection.

Always ensure all connections are secure before towing. Verify that all trailer lights (running lights, brake lights, turn signals) are functioning correctly.

Şəkil 4.1: Məsample of trailer lights functioning correctly after connection.

5. Baxım

Regular maintenance helps ensure the longevity and reliable performance of your CURT 55774 connector.

• Təmiz saxla: Regularly inspect the connector sockets for dirt, debris, or corrosion. Clean with a soft brush and electrical contact cleaner if necessary.
• Use Dust Covers: Always ensure the spring-loaded dust cover on the 7-pin socket is closed when not in use to protect the internal contacts from moisture and debris.
• Naqilləri yoxlayın: Periodically check the wiring harness for any signs of damage, fraying, or loose connections.
• Yağlayın: Apply a small amount of dielectric grease to the electrical contacts periodically to prevent corrosion and ensure optimal conductivity.

6. Giderme

If you experience issues with your trailer lights or electrical connection, consider the following troubleshooting steps:

• Elektrik/İşıq yoxdur:
  • Ensure the vehicle's ignition is on and the vehicle's tow package is activated.
  • Check the vehicle's fuses related to trailer wiring.
  • Verify that the connector is fully seated in the USCAR socket and the trailer plug is fully inserted into the CURT 55774.
• Fasiləli Bağlantı:
  • Inspect the pins and sockets for corrosion or bending. Clean or straighten as needed.
  • Ensure the dust cover is not interfering with the connection.
• Corrosion in 7-Way Socket:
  • Corrosion can occur if the dust cover is not consistently used or if the unit is exposed to harsh weather.
  • Clean with a baking soda and water mixture and a soft-bristle brush. Rinse thoroughly and apply dielectric grease.
  • If pins are severely corroded or broken, the unit may need replacement.
• Incorrect Light Function:
  • Confirm the trailer's wiring is correctly configured and matches standard pin assignments.
  • Check for any loose wires within the trailer's plug or the CURT 55774 unit.

7. Spesifikasiyalar

Image 7.1: Approximate dimensions of the CURT 55774 connector.

8. Zəmanət və Dəstək

For warranty information or technical support regarding your CURT 55774 Dual-Output Vehicle-Side Trailer Wiring Connector, please refer to the official CURT website or contact CURT customer service directly. Keep your purchase receipt for warranty claims.
