1. Giriş
The HECHT 212 Universal Spreader is designed for the uniform distribution of various granular materials such as seeds, fertilizers, lime, or de-icing salt. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your spreader.
Məhsulu istifadə etməzdən əvvəl bu təlimatı diqqətlə oxuyun və gələcəkdə istinad üçün saxlayın.
2. Təhlükəsizlik Təlimatları
Yaralanma və ya zədələnmənin qarşısını almaq üçün həmişə aşağıdakı təhlükəsizlik tədbirlərinə əməl edin:
- Təlimatı oxuyun: Familiarize yourself with all controls and proper use before operating the spreader.
- Fərdi Qoruyucu Avadanlıqlar: Wear appropriate protective gear, such as gloves and eye protection, especially when handling chemicals like fertilizers or de-icing salt.
- Material uyğunluğu: Only use materials suitable for spreading. Do not use powdered substances that may clog the mechanism.
- Uşaqlar və ətrafdakılar: Uşaqları və ev heyvanlarını iş yerindən uzaq tutun.
- Sabit yer: Operate the spreader on stable, level ground. Be cautious on slopes.
- Yaddaş: Store the spreader in a dry, secure place, out of reach of children.
- Təmizləmə: Clean the spreader thoroughly after each use, especially when using corrosive materials like salt.
3. Paketin məzmunu
Qablaşdırmanı açarkən, bütün komponentlərin mövcud olduğundan və zədələnmədiyindən əmin olun:
- 1 x HECHT 212 Universal Spreader (unassembled)
- 1 x Tutacaq yığımı
- 2 x Təkərlər
- Assembly hardware (screws, nuts, washers)
- Bu İstifadəçi Təlimatı
4. Yığıncaq
The HECHT 212 spreader requires minimal assembly. Follow these steps:
- Təkərləri əlavə edin: Securely attach the two wheels to the axle of the spreader body using the provided hardware. Ensure they rotate freely.
- Dəstəyi yığmaq: Connect the handle sections if they are separate.
- Attach Handle to Spreader Body: Fasten the assembled handle to the main body of the spreader. Ensure all connections are tight and secure.
- Yoxlama mexanizmi: Verify that the spreading mechanism and the adjustment lever operate smoothly.

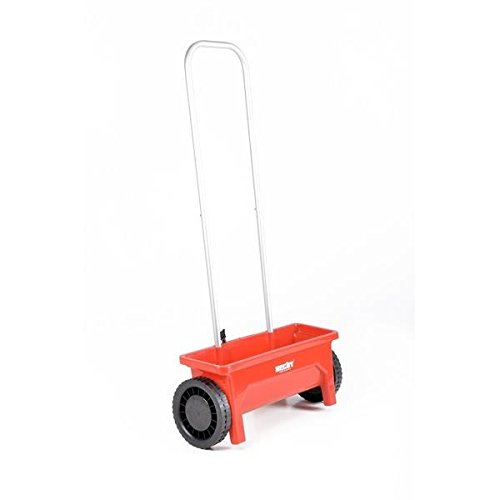

Şəkil 1: The HECHT 212 Universal Spreader. This image displays the main components including the red hopper, black handle, and wheels, illustrating the general appearance of the product after assembly.
5. Əməliyyat
Operating the HECHT 212 spreader is straightforward:
- Qutunu doldurun: Open the lid and fill the 12-liter hopper with the desired granular material (seeds, fertilizer, lime, or de-icing salt). Do not overfill.
- Adjust Spreading Quantity: The spreader features a 10-level adjustment mechanism to control the flow rate of the material. Select the appropriate setting based on the material type and desired coverage. Start with a lower setting and adjust as needed.
- Begin Spreading: Push or pull the spreader across the area to be treated. The ergonomic handle facilitates comfortable operation. Maintain a consistent walking speed for even distribution.
- Hətta paylama: Overlap slightly on each pass to ensure complete and uniform coverage.
- Boşaltma: After use, empty any remaining material from the hopper.
6. Baxım
Regular maintenance ensures the longevity and optimal performance of your spreader:
- Təmizləmə: After each use, especially when using corrosive materials like salt, thoroughly clean the hopper and spreading mechanism with water. Dry all parts completely to prevent corrosion.
- Yağlama: Periodically check and lubricate moving parts, such as the axle and adjustment mechanism, with a suitable lubricant to ensure smooth operation.
- Yaddaş: Store the spreader in a dry, covered area, protected from direct sunlight and extreme temperatures. Its narrow design (18.5 cm width) allows for easy storage in sheds or garages.
- Yoxlama: Regularly inspect the wheels, handle, and spreading mechanism for any signs of wear or damage. Replace damaged parts as necessary.
7. Giderme
Qarşılaşa biləcəyiniz ümumi problemlərin həlli yolları bunlardır:
| Problem | Mümkün Səbəb | Həll |
|---|---|---|
| Uneven spreading | Inconsistent walking speed; clogged mechanism; incorrect adjustment setting. | Maintain a steady pace; clear any blockages from the spreading mechanism; adjust the flow rate setting. |
| Material not dispensing | Spreading mechanism closed; hopper empty; material clumped or too fine. | Ensure the adjustment lever is open; refill hopper; break up clumps or use suitable granular material. |
| Təkərlər rəvan dönmür | Debris in axle; lack of lubrication; damaged wheel. | Clean axle area; apply lubricant; inspect for damage and replace if necessary. |
8. Spesifikasiyalar
| Xüsusiyyət | Spesifikasiya |
|---|---|
| Model | HECHT 212 |
| İstehsalçıya istinad | H229 |
| Hopper Tutumu | 12 litr |
| İş eni | 460 mm |
| Spreading Quantity Adjustment | 10 səviyyə |
| Təkər diametri | 185 mm |
| Ümumi uzunluq | 570 mm |
| Ümumi Genişlik | 185 mm |
| Ümumi Hündürlük | 1080 mm |
| Çəki | 2 kq |
| Rəng | Qırmızı |
9. Zəmanət və Dəstək
Zəmanət məlumatı və müştəri dəstəyi üçün, zəhmət olmasa, alış zamanı təqdim olunan sənədlərə baxın və ya pərakəndə satıcınızla əlaqə saxlayın. Hər hansı bir zəmanət iddiası üçün alış sənədinizi saxlayın.
For technical assistance or spare parts inquiries, please contact Hecht customer service or visit their official website. (Specific contact details are not available in the provided product data.)
