MISTRAL MACF7

Mistral MACF7 Air Cooler with HEPA Filter User Manual

Model: MACF7

Giriş

Aldığınız üçün təşəkkür edirikasing the Mistral MACF7 Air Cooler with HEPA Filter. This manual provides important information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read this manual thoroughly before use and retain it for future reference.

Əhəmiyyətli Təhlükəsizlik Təlimatları

Yanğın, elektrik cərəyanı vurması və insanların yaralanması riskini azaltmaq üçün elektrik cihazlarından istifadə edərkən həmişə əsas təhlükəsizlik tədbirlərinə əməl edin.

Paketin məzmunu

Bütün əşyaların paketdə olduğunu yoxlayın:

Məhsul Bitdiview

The Mistral MACF7 Air Cooler is designed to provide efficient cooling with the added benefit of a HEPA H13 filter for improved air quality. It features multiple speed and mode settings, automatic oscillation, and a convenient timer function.

Mistral MACF7 Air Cooler front view

Şəkil 1: Ön view of the Mistral MACF7 Air Cooler. The unit is white with a grey front panel, featuring a control panel at the top and a visible water level indicator at the bottom.

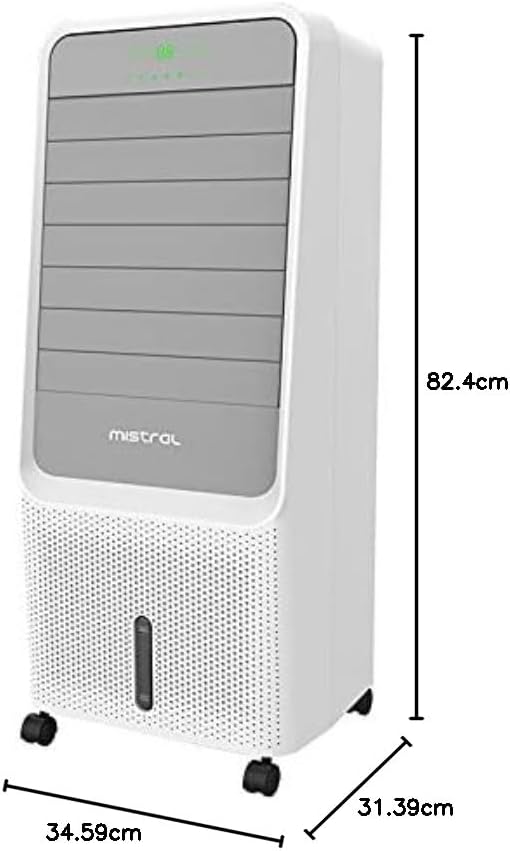

Mistral MACF7 Air Cooler dimensions

Figure 2: Dimensions of the Mistral MACF7 Air Cooler. The image shows the height as 82.4cm, width as 34.59cm, and depth as 31.39cm.

Quraşdırma

  1. Qablaşdırma: Hava soyuducusunu qablaşdırmasından diqqətlə çıxarın. Qablaşdırma materiallarını gələcəkdə saxlamaq və ya daşımaq üçün saxlayın.
  2. Yerləşdirmə: Place the air cooler on a firm, level surface. Ensure there is at least 20cm of clear space around the unit for proper airflow.
  3. Su çəninin doldurulması:
    • Pull out the detachable water tank from the bottom rear of the unit.
    • Fill the tank with clean, cool water. Do not exceed the maximum fill line. For enhanced cooling, you may add ice packs (not included) to the water tank.
    • Su çəni yerinə oturana qədər ehtiyatla cihazın içərisinə sürüşdürün.
  4. Enerji bağlantısı: Elektrik kabelini standart elektrik rozetkasına qoşun.

Əməliyyat Təlimatları

The Mistral MACF7 Air Cooler can be operated using the control panel on the unit or the included remote control.

İdarəetmə Paneli / Uzaqdan İdarəetmə Funksiyaları:

Avtomatik söndürmə: The unit features an automatic shut-off function after 15 hours of continuous usage from the last setting for energy saving and safety.

Baxım

Daimi texniki qulluq hava soyuducunuzun optimal performansını və uzunömürlülüyünü təmin edir.

Su çəninin təmizlənməsi:

  1. Hava soyuducusunu elektrik rozetkasından ayırın.
  2. Pull out the detachable water tank.
  3. Qalan suyu boşaltın.
  4. Tankı yumşaq parça və yumşaq yuyucu vasitə ilə təmizləyin. Təmiz su ilə yaxşıca yuyun.
  5. Yenidən qurğuya daxil etməzdən əvvəl tankın tamamilə qurumasına icazə verin.

Cleaning the HEPA H13 Filter:

The HEPA H13 filter has an efficiency rate of 99.97%. Regular cleaning is recommended to maintain air quality and airflow.

Honeycomb Filter Drying Function:

This function helps to dry the honeycomb filter to prevent mold and mildew growth. Activate this function periodically, especially before storing the unit.

Xarici Təmizlik:

Problemlərin aradan qaldırılması

Kondisionerinizdə problemlərlə qarşılaşsanız, aşağıdakı ümumi problemlərə və həllərə baxın:

ProblemMümkün SəbəbHəll
Cihaz açılmırEnerji təchizatı yoxdur
Elektrik kabeli düzgün qoşulmayıb
Elektrik çıxışını yoxlayın
Elektrik kabelinin etibarlı şəkildə qoşulduğundan əmin olun
Sərin hava yoxdurSu çəni boşdur
Water pump protection activated
Su anbarını doldurun
Check water level, ensure pump is submerged
Zəif hava axınıHava filtri tıxanmışdır
Hava giriş/çıxışları bloklanıb
HEPA filtrini təmizləyin və ya dəyişdirin
Ensure no obstructions around the unit
Qeyri -adi səs -küyCihaz düz bir səthdə deyil
İçərisində yad cisim
Düz, sabit bir səthə qoyun
Unplug and inspect for foreign objects (if safe to do so)

Bu həll yollarına cəhd etdikdən sonra problem davam edərsə, müştəri dəstəyi ilə əlaqə saxlayın.

Spesifikasiyalar

XüsusiyyətDetal
ModelMACF7
BrendMISTRAL
Forma faktoruPersonal, Freestanding
Materialplastik
Rəng
Su Anbarının Tutumu7 litr
Filtr növüHEPA H13 (99.97% efficiency)
Sürət Seçimləri4 (High, Mid, Low, Silent)
Rejimlər3 (Smart, Natural, Sleep)
Taymer8 saat
DalğalanmaAutomatic Left and Right
Xüsusi XüsusiyyətlərBuilt-in Ionizer, Detachable Water Tank, Water Pump Protection, Honeycomb Filter Drying Function, Auto Shut Off (15 hours)
NəzarətlərUzaqdan İdarəetmə
Montaj Tələb olunurBəli
Daxil olan komponentlər1 x Air Cooler

Zəmanət və Dəstək

This Mistral MACF7 Air Cooler comes with a Limited Warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the duration and coverage of the warranty.

For technical support, service, or warranty claims, please contact the authorized Mistral service center or your retailer. Ensure you have your proof of purchase and product model number (MACF7) ready when contacting support.
