FKG Front Load Washer Tub Bearing and Seal Kit (Model GL-963) - Instruction Manual

1. Giriş

This instruction manual provides detailed guidance for the installation, operation, and maintenance of the FKG Front Load Washer Tub Bearing and Seal Kit, Model GL-963. Please read this manual thoroughly before beginning any installation or repair work to ensure proper procedure and safety.

This kit is designed to replace worn or damaged tub bearings and seals in compatible front-load washing machines, restoring smooth and quiet operation.

2. Məhsul bitdiview

The FKG Front Load Washer Tub Bearing and Seal Kit (Model GL-963) includes the necessary components to repair the tub bearing system of various front-load washing machines. The kit typically consists of two bearings and one tub seal, along with bearing grease.

Şəkil 2.1: Complete FKG Tub Bearing and Seal Kit, including two bearings, one seal, and a tube of bearing grease.

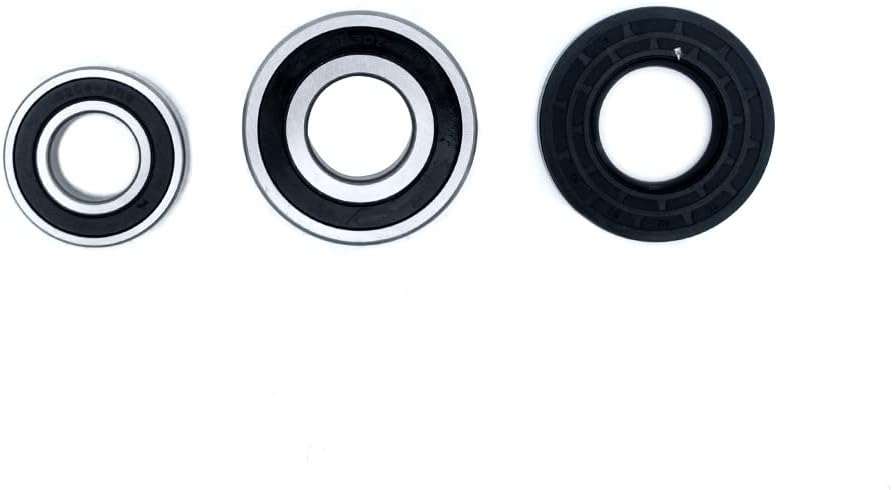

Şəkil 2.2: Individual components of the kit: two bearings and one tub seal, shown from a top-down perspective.

Şəkil 2.3: Yaxın plan view of one of the sealed bearings, displaying its part number B607-2RS.

Şəkil 2.4: Ətraflı view of the tub seal, showing its design and numerical markings.

3. Uyğunluq

This FKG tub bearing and seal kit (Model GL-963) is compatible with various front-load washing machine models from Whirlpool, Maytag, Inglis, and Amana. Please verify your appliance's model number against the list below to ensure compatibility.

Hissə nömrələrini əvəz edir: W10285625, 1552638, AH2373033, EA2373033, PS2373033, B00ECV6BPG.

Məlum Uyğun Modellər:

• Whirlpool Models: WFW9050XW00, WFW9050XW01, WFW9050XW02, WFW9050XW03, WFW9150WW00, WFW9150WW01, WFW9150WW02, WFW9151YW00, YWFW9050XW00, YWFW9050XW01, YWFW9151YW00.
• maytag Modellər: MHWE200XW00, MHWE201YW00, MHWE250XL00, MHWE251YG00, MHWE251YL00, MHWZ400TQ03, YMHWE201YW00, YMHWE251YG00, YMHWE251YL00.
• Inglis Models: IFW7300WW00, IFW7300WW01, IFW7300WW02, YIFW7300WW00.
• Amana Models: NFW7300WW00, NFW7300WW01, NFW7300WW02, YNFW7300WW00.

4. Təhlükəsizlik Məlumatı

WARNING: Always disconnect power to the washing machine before attempting any service or repair. Failure to do so can result in serious injury or death.

• Əlcək və göz qoruyucusu kimi müvafiq fərdi qoruyucu vasitələrdən (FQV) istifadə edin.
• İş sahəsinin yaxşı işıqlandırıldığına və maneələrdən təmizləndiyinə əmin olun.
• If you are unsure about any step of the repair process, consult a qualified appliance technician.
• Keep all parts and tools away from children and pets.

5. Quraşdırma və Quraşdırma

Replacing tub bearings and seals in a front-load washer is a complex procedure that typically requires significant disassembly of the appliance. It is recommended that this repair be performed by individuals with mechanical aptitude and experience in appliance repair.

Lazımi alətlər (daxil deyil):

• Açar açar dəsti
• Tornavida dəsti (Phillips və düz başlı)
• Kəlbətin
• Hammer and punch set
• Bearing puller (may be required)
• Seal driver or appropriate sized pipe/socket for seal installation
• Degreaser and cleaning cloths

General Installation Steps (Consult specific washer service manual for detailed instructions):

1. Gücü ayırın: Unplug the washing machine from the electrical outlet. Turn off water supply valves.
2. Disassemble Washer: Carefully disassemble the washing machine to access the outer tub. This typically involves removing the top panel, control panel, dispenser, front panel, door, door boot, and various hoses and wiring.
3. Remove Inner Tub: Once the outer tub is accessible, remove the stator/rotor assembly (if direct drive), then the drive pulley and shaft nut. The inner tub can then be removed from the outer tub.
4. Remove Old Bearings and Seal: With the inner tub removed, the old bearings and seal will be visible in the outer tub. Use a punch and hammer to carefully tap out the old bearings from the inside out. Pry out the old tub seal.
5. Clean Tub Housing: Thoroughly clean the bearing and seal housing area in the outer tub, removing any old grease, rust, or debris.
6. Yeni Möhürün Quraşdırılması: Apply a thin layer of the provided bearing grease to the new tub seal. Carefully press the new seal into place in the outer tub, ensuring it is seated evenly and flush. A seal driver or a large socket/pipe can assist in this.
7. Yeni Yastıqları Quraşdırın: Apply a thin layer of the provided bearing grease to the new bearings. Install the new bearings into the outer tub. The smaller bearing usually goes in first, followed by the larger one. Use a bearing driver or a large socket/pipe to gently tap them into place until fully seated. Ensure they are installed straight and not cocked.
8. Paltaryuyanı yenidən yığın: Reassemble the washing machine in reverse order of disassembly. Pay close attention to all connections, hoses, and wiring. Ensure the inner tub spins freely before fully reassembling.
9. Test əməliyyatı: Once fully reassembled, reconnect water and power. Run a short test cycle to check for leaks and proper operation.

6. Əməliyyat Təlimatları

This product is a replacement part and does not have specific operating instructions beyond its function within the washing machine. Once installed correctly, the washing machine should operate as intended by its manufacturer. Refer to your washing machine's original user manual for operating instructions.

7. Baxım

The FKG tub bearings and seal are designed for long-term, maintenance-free operation once installed. Regular maintenance of the washing machine itself, such as cleaning the dispenser and drum, can contribute to the overall longevity of all components.

If unusual noises or leaks occur after installation, refer to the troubleshooting section or consult a qualified technician.

8. Giderme

If you encounter issues after installing the FKG Tub Bearing and Seal Kit, consider the following common problems and solutions:

• Loud Noise During Spin Cycle:

  Mümkün Səbəb: Bearings not fully seated, incorrect bearing installation, or other components (e.g., motor, suspension) are faulty.

  Həlli: Re-check bearing seating. Ensure no debris is interfering. If noise persists, further diagnosis of other washer components may be necessary.
• Su sızması:

  Mümkün Səbəb: Tub seal improperly installed, damaged during installation, or other seals/hoses are leaking.

  Həlli: Inspect the tub seal for proper seating and damage. Ensure all hoses and clamps reconnected during reassembly are secure and leak-free.

• Washer Not Spinning/Imbalanced:

  Mümkün Səbəb: Inner tub not properly aligned with the shaft, or other washer components (e.g., motor, drive belt, suspension) are faulty.

  Həlli: Verify the inner tub is correctly mounted on the shaft and spins freely. Check other washer components as per your appliance's service manual.

For issues not listed here, refer to your washing machine's specific service manual or contact a qualified appliance repair technician.

9. Spesifikasiyalar

10. Zəmanət və Dəstək

Zəmanət: This FKG product comes with a 1-year limited warranty. For warranty claims or issues, please contact FKG customer support.

Müştəri Dəstəyi: If you encounter any problems or require technical assistance, please contact FKG customer service. They aim to resolve issues within 24 hours (refund/replace/offer technical support).

Ətraflı məlumat üçün müraciət edin FKG Store on Amazon.
