VEVOR 279827

VEVOR 279827 Dryer Motor Instruction Manual

Model: 279827

1. Giriş

This manual provides essential information for the safe and effective installation, operation, and maintenance of your VEVOR 279827 Dryer Motor. This motor is designed as a replacement part for various dryer models, including those from Kenmore, Whirlpool, KitchenAid, and Roper. Please read these instructions thoroughly before proceeding with any installation or repair.

VEVOR 279827 Dryer Motor with a washing machine in the background

Image 1.1: VEVOR 279827 Dryer Motor, highlighting its powerful 1/3HP, 1690RPM, and low noise operation.

The VEVOR 279827 dryer motor delivers strong and powerful performance with 1/3HP horsepower, running at 1690RPM high speed while maintaining low noise levels. It is designed to revive your dryer and improve drying efficiency.

2. Təhlükəsizlik Məlumatı

Always prioritize safety when working with electrical appliances. Failure to follow these safety guidelines may result in electric shock, injury, or damage to property.

  • Gücü ayırın: Before attempting any installation, repair, or maintenance, always ensure the dryer's power supply is completely disconnected from the electrical outlet.
  • Qoruyucu vasitələrdən istifadə edin: Wear appropriate personal protective equipment, including gloves, to protect your hands from sharp edges and potential electrical hazards.
  • İxtisaslı Kadrlar: If you are unsure about any step of the installation or repair process, consult a qualified appliance technician.
  • Komponentləri yoxlayın: Before installation, inspect the new motor and all surrounding dryer components for any damage. Do not install damaged parts.
  • Müvafiq alətlər: Use only the correct tools for the job to prevent damage to the motor or dryer.

3. Məhsulun xüsusiyyətləri

The VEVOR 279827 Dryer Motor is engineered with the following key features:

  • Əla Performans: Delivers 1/3 horsepower at 1690 RPM for efficient drying.
  • Təhlükəsizlik və Davamlılıq: Constructed from durable premium aluminum materials, featuring corrosion and rust resistance, thermal protection, and rigorous testing for long-lasting performance.
  • Aşağı səs-küy əməliyyatı: Designed to operate quietly, ensuring a peaceful home environment.
  • Geniş Uyğunluq: Replaces numerous part numbers for various dryer brands.

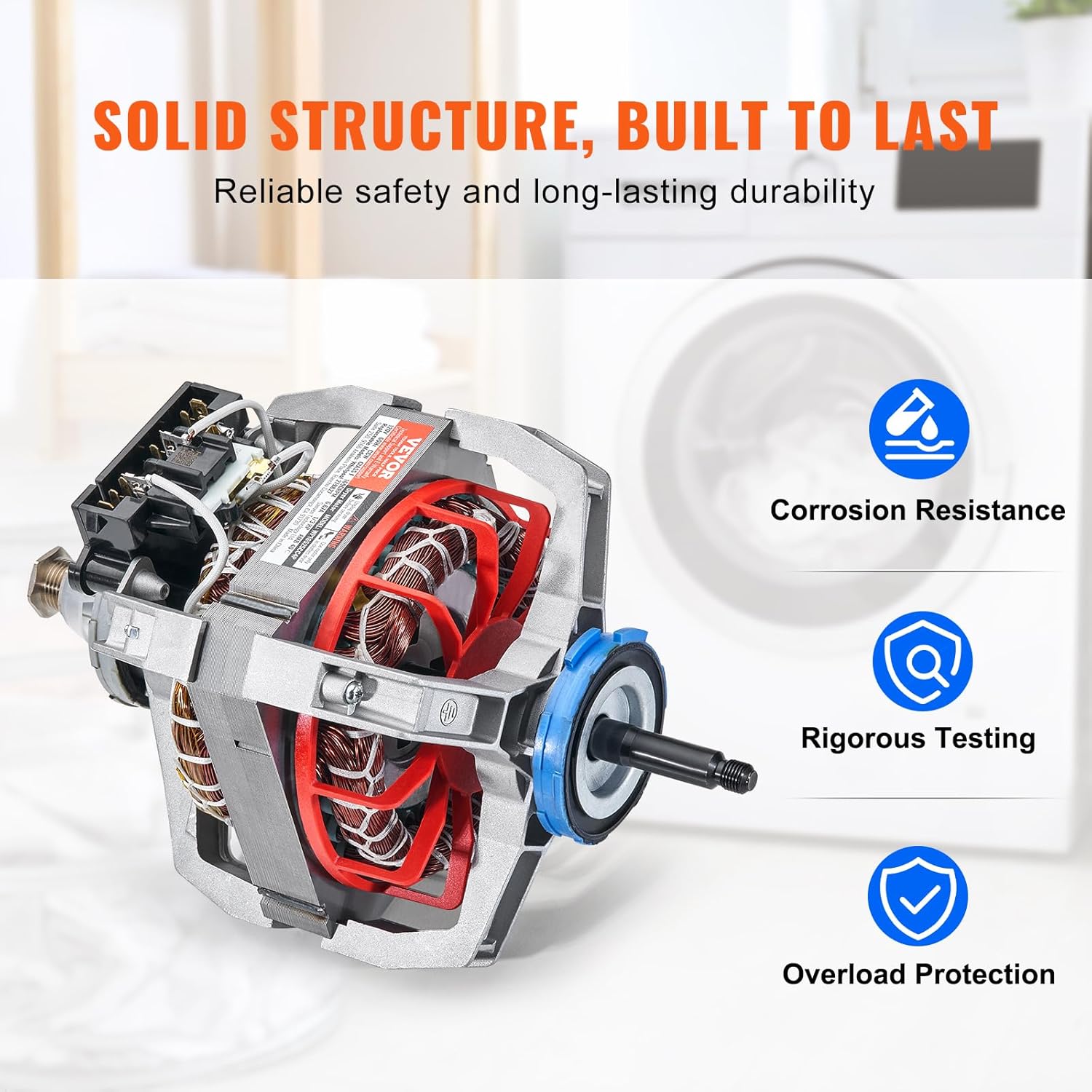

Close-up of the VEVOR 279827 Dryer Motor

Image 3.1: The VEVOR 279827 Dryer Motor emphasizing its solid structure, corrosion resistance, rigorous testing, and overload protection.

4. Uyğunluq

The 279827 dryer motor is compatible with a range of dryer models from brands such as Kenmore, Whirlpool, KitchenAid, and Roper. To ensure a perfect match for your specific dryer model, it is recommended to verify compatibility.

Determining Compatible Models:

  1. ziyarət edin PartSelect websayt.
  2. Enter the motor model number "279827" into the search field.
  3. Review the list of compatible dryer models provided.

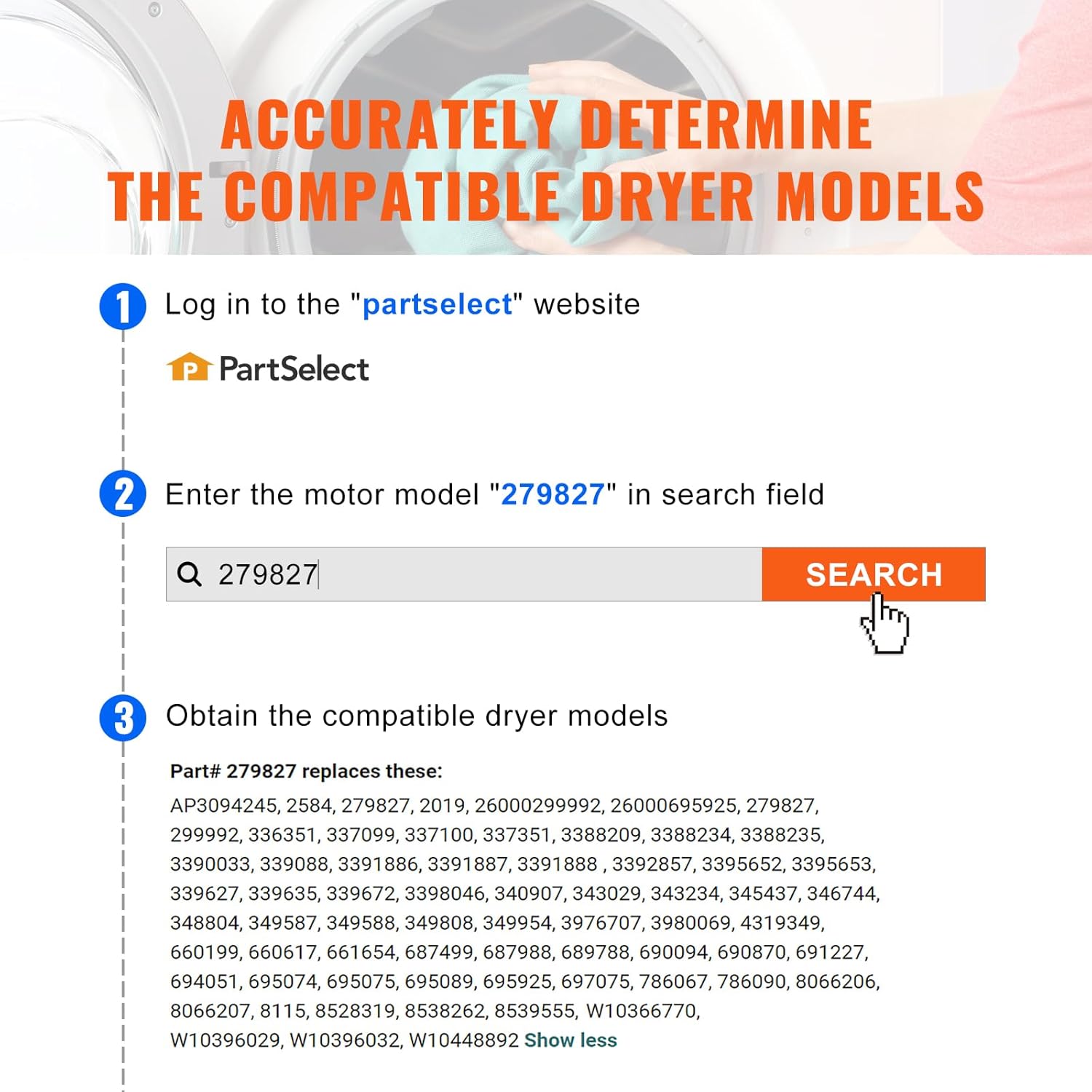

Instructions on how to use the PartSelect website to determine compatible dryer models

Image 4.1: Guide for using the PartSelect website to find compatible dryer models for the 279827 motor.

Hissə nömrələrini əvəz edir:

This motor replaces the following part numbers:

AP3094245, 2584, 279827, 2019, 26000299992, 26000695925, 279827, 299992, 336351, 337099, 337100, 337351, 3388209, 3388234, 3388235, 3390033, 339088, 3391886, 3391887, 3391888, 3392857, 3395652, 3395653, 339627, 339635, 339672, 3398046, 340907, 343029, 343234, 345437, 346744, 348804, 349587, 349588, 349808, 349954, 3976707, 3980069, 4319349, 660199, 660617, 661654, 687499, 687988, 689788, 690094, 690870, 691227, 694051, 695074, 695075, 695089, 695925, 697075, 786067, 786090, 8066206, 8066207, 8115, 8528319, 8538262, 8539555, W10366770, W10396029, W10396032, W10448892.

5. Quraşdırma Təlimatları

Replacing a dryer motor requires careful attention to detail. Follow these steps for a straightforward installation. Always ensure the dryer is unplugged before starting.

Ümumi addımlar:

  1. Quraşdırmaya hazırlayın: Disconnect the dryer from its power source. Move the dryer to an open area to allow access to its internal components.
  2. Motora daxil olun: Depending on your dryer model, you may need to remove the front panel, top panel, or rear panel to access the motor compartment. Refer to your dryer's specific service manual for detailed disassembly instructions.
  3. Köhnə motoru ayırın: Carefully disconnect all wiring and belts from the old motor. Note the position of all connections, taking photos if necessary, to ensure correct reassembly.
  4. Köhnə motoru çıxarın: Unmount and remove the faulty motor from its housing.
  5. Yeni Motor quraşdırın: Position the VEVOR 279827 motor in the dryer's motor housing.
  6. Connect Wiring and Belt: Reconnect all electrical wiring and the drive belt to the new motor according to your notes or photos. Ensure all connections are secure.
  7. Qurutma maşınını yenidən yığın: Reattach all panels and components that were removed during disassembly.
  8. Test əməliyyatı: Plug the dryer back into the power source and test its operation to ensure the drum rotates correctly and there are no unusual noises.
Diagram showing the dimensions of the VEVOR 279827 Dryer Motor shaft and overall length

Image 5.1: Motor shaft size and overall dimensions are crucial for a perfect fit. Ensure these measurements align with your dryer's requirements.

Vacib quraşdırma qeydləri:

  • Rubber Mounting Rings: The motor uses rubber rings (or
