Giriş
This manual provides detailed instructions for the safe and effective use of your VEVOR 7843B Manual A/C Hose Crimper Kit. This tool is designed for crimping automotive air conditioning pipes with precision and ease. Please read this manual thoroughly before operation and retain it for future reference.
Təhlükəsizlik Təlimatları
- Always wear appropriate personal protective equipment, including safety glasses and gloves, when operating the crimper.
- Ensure the workpiece is securely held before crimping to prevent movement and potential injury.
- Do not attempt to crimp materials or hoses that are not specified for this tool.
- Keep hands and fingers clear of the crimping dies during operation.

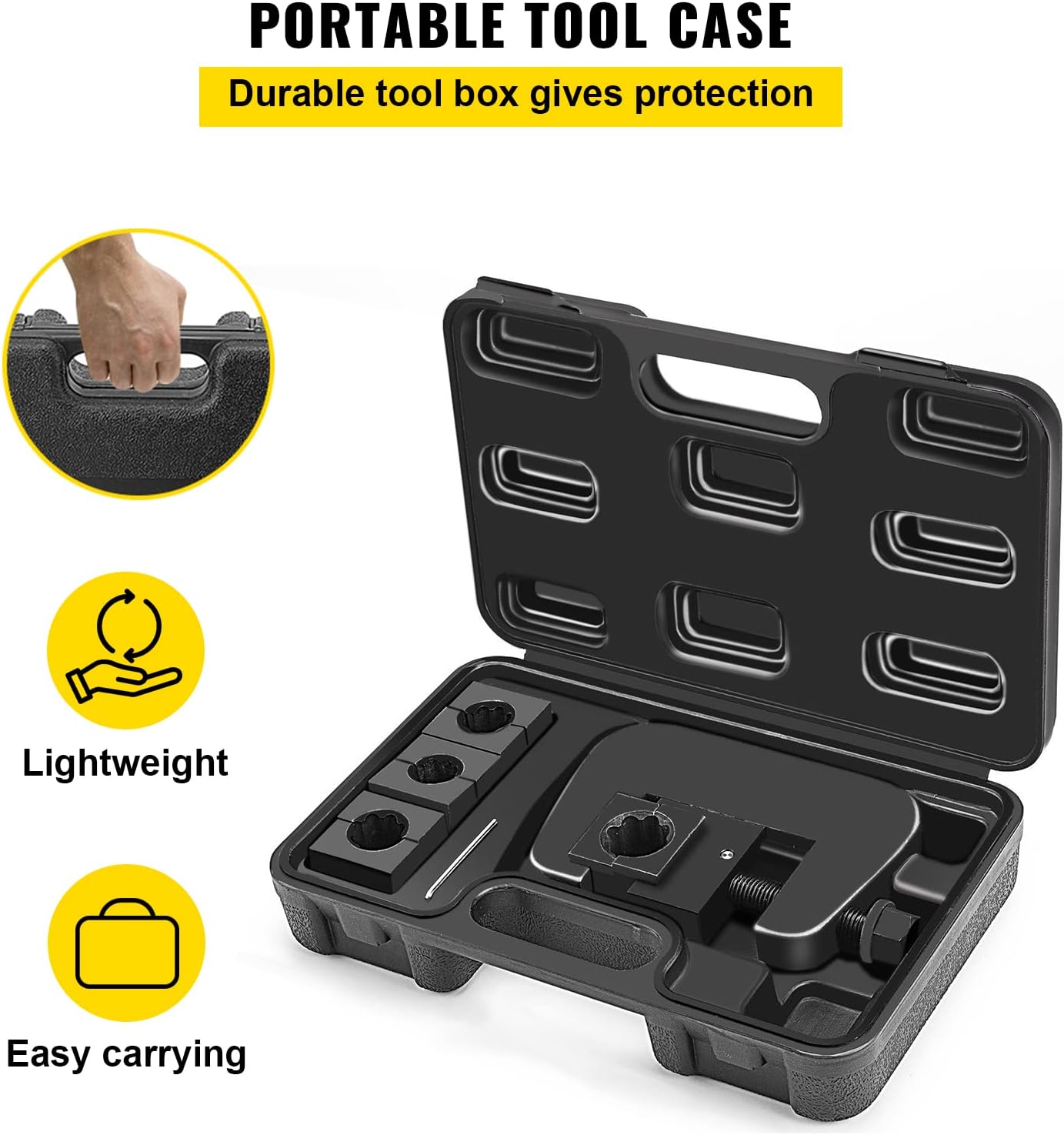

- Store the tool and dies in the provided case when not in use to prevent damage and loss.
- Uşaqları və icazəsiz şəxsləri iş yerindən uzaq tutun.
Paketin məzmunu
Paketi açarkən bütün əşyaların mövcud olduğunu yoxlayın:
- 1 x Hose Crimper Unit
- 1 x Custom Molded Storage Box
- 4 x Crimping Dies: #6 (5/16"), #8 (13/32"), #10 (1/2"), #12 (5/8")
- 1 x Açar
Spesifikasiyalar
| Model | 7843B |
| Dies Type | #6 (5/16"), #8 (13/32"), #10 (1/2"), #12 (5/8") |
| Dies Quantity | 4 |
| Material | Dəmir |
| Maddə Çəkisi | 4.54 kq (10 funt) |
| Tool Box Size | 11.4 x 7.5 x 2.8 düym (28.95 x 19.05 x 7.12 sm) |
| Məhsul Ölçüsü | 7.5 x 4.5 x 1.1 düym (19.05 x 11.43 x 2.79 sm) |
Quraşdırma
- Kiti qablaşdırmadan çıxarın: Remove all components from the custom molded storage box.
- Select the Correct Die: Identify the appropriate crimping die size (#6, #8, #10, or #12) that matches your A/C hose and fitting.
- Insert the Die: Carefully place the selected die into the crimper unit's designated slot. Ensure it sits flush and is properly aligned.

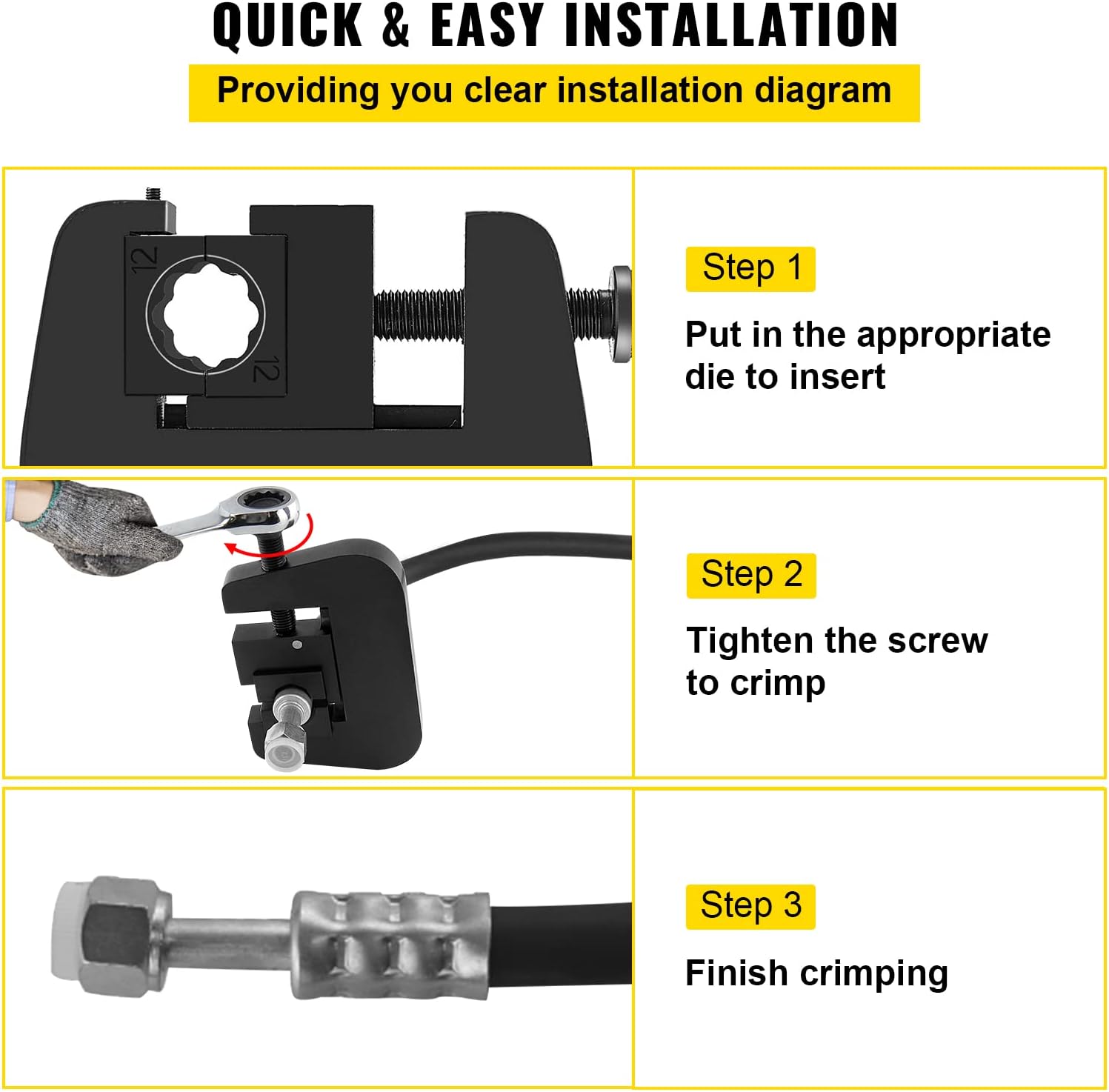

Əməliyyat Təlimatları
Follow these steps to crimp an A/C hose:
- Prepare the Hose and Fitting: Ensure the A/C hose and fitting are clean and free of debris. Position the fitting onto the hose correctly.
- Position the Hose in the Crimper: Open the crimper jaws and carefully place the hose with the fitting into the selected die. Ensure the fitting is centered within the die for an even crimp.
- Vidanı sıxın: Use the provided wrench to gradually tighten the screw on the crimper. Apply steady, even pressure. Continue tightening until the die fully compresses around the fitting, creating a secure crimp. Do not overtighten.
- Qıvrımı yoxlayın: After crimping, loosen the screw and remove the hose. Visually inspect the crimped area to ensure it is uniform, tight, and free from any gaps or damage. A proper crimp will securely hold the fitting to the hose.
Baxım
- Təmizləmə: After each use, wipe down the crimper unit and dies with a clean, dry cloth to remove any dirt or residue.
- Yağlama: Periodically apply a light coat of machine oil to the screw mechanism to ensure smooth operation and prevent rust.
- Yaddaş: Always store the crimper and dies in their original custom molded box in a dry, clean environment to protect them from damage and corrosion.
- Yoxlama: Regularly inspect the dies and crimper unit for any signs of wear, damage, or deformation. Replace worn or damaged components as necessary.
Problemlərin aradan qaldırılması
- Crimping is uneven or incomplete:
- Ensure the correct die size is selected for the hose and fitting.
- Verify the hose and fitting are properly centered within the die before tightening.
- Ensure the screw is tightened sufficiently to fully compress the die.
- Difficulty tightening the screw:
- Check for any obstructions or debris in the screw threads.
- Apply a small amount of lubricant to the screw mechanism.
- Dies are stuck or difficult to remove:
- Ensure the screw is fully loosened.
- Gently tap the dies to dislodge them if necessary.
Zəmanət və Dəstək
Zəmanət məlumatı və ya texniki dəstək üçün VEVOR rəsmisinə müraciət edin websaytına daxil olun və ya birbaşa müştəri xidmətləri ilə əlaqə saxlayın. Satınalma qəbzini alışın sübutu kimi saxlayın.
