1. Məhsul bitdiview
The Panasonic Ziaino F-ML4000B is a hypochlorous acid air purifier and deodorizer designed to sterilize and deodorize the air in your living space. It utilizes hypochlorous acid to effectively eliminate floating and adhering bacteria and viruses, as well as various odors, providing a cleaner and fresher environment. Its compact design allows for flexible placement in various rooms.
Figure 1: Panasonic Ziaino F-ML4000B unit, showcasing onun parlaq dizaynı.
2. Təhlükəsizlik Məlumatı
Özünüzə və başqalarına xəsarət yetirməmək, eləcə də əmlaka dəyən ziyanın qarşısını almaq üçün cihazı istifadə etməzdən əvvəl bütün təhlükəsizlik təlimatlarını diqqətlə oxuyun. Gələcəkdə istifadə üçün bu təlimatı saxlayın.
- Always use the correct power supply as specified in the product specifications.
- Do not block air inlets or outlets. Ensure proper ventilation around the unit.
- Keep the appliance away from water and moisture. Do not operate with wet hands.
- Do not attempt to disassemble or repair the unit yourself. Contact qualified service personnel for repairs.
- Uşaqların və ev heyvanlarının əli çatmayan yerdə saxlayın.
- Only use specified salt tablets and water for the hypochlorous acid generation.
3. Quraşdırma
Follow these steps to set up your Ziaino F-ML4000B for the first time:
- Vahidi qablaşdırmadan çıxarın: Hava təmizləyicisini qablaşdırmasından ehtiyatla çıxarın.
- Məkan seçin: Place the unit on a flat, stable surface. Ensure there is adequate space around the unit for air circulation. The compact design allows it to fit in spaces as small as A4 size.
- Su tankını doldurun: Remove the water tank from the unit. Fill it with clean tap water up to the maximum fill line.
- Insert Salt Tablet: Place one specified salt tablet into the designated compartment within the water tank. The unit automatically generates hypochlorous acid from the salt tablet and water.
- Replace Water Tank: Securely reinsert the water tank into the unit.
- Güc bağlayın: Elektrik kabelini uyğun elektrik rozetkasına qoşun.
Figure 2: The compact design of the Ziaino F-ML4000B, suitable for small spaces like an A4 footprint.
Figure 3: Illustration of the automatic hypochlorous acid generation process within the unit.
4. Əməliyyat Təlimatları
The Ziaino F-ML4000B offers effective sterilization and deodorization for various indoor environments.
4.1 İdarəetmə Paneli

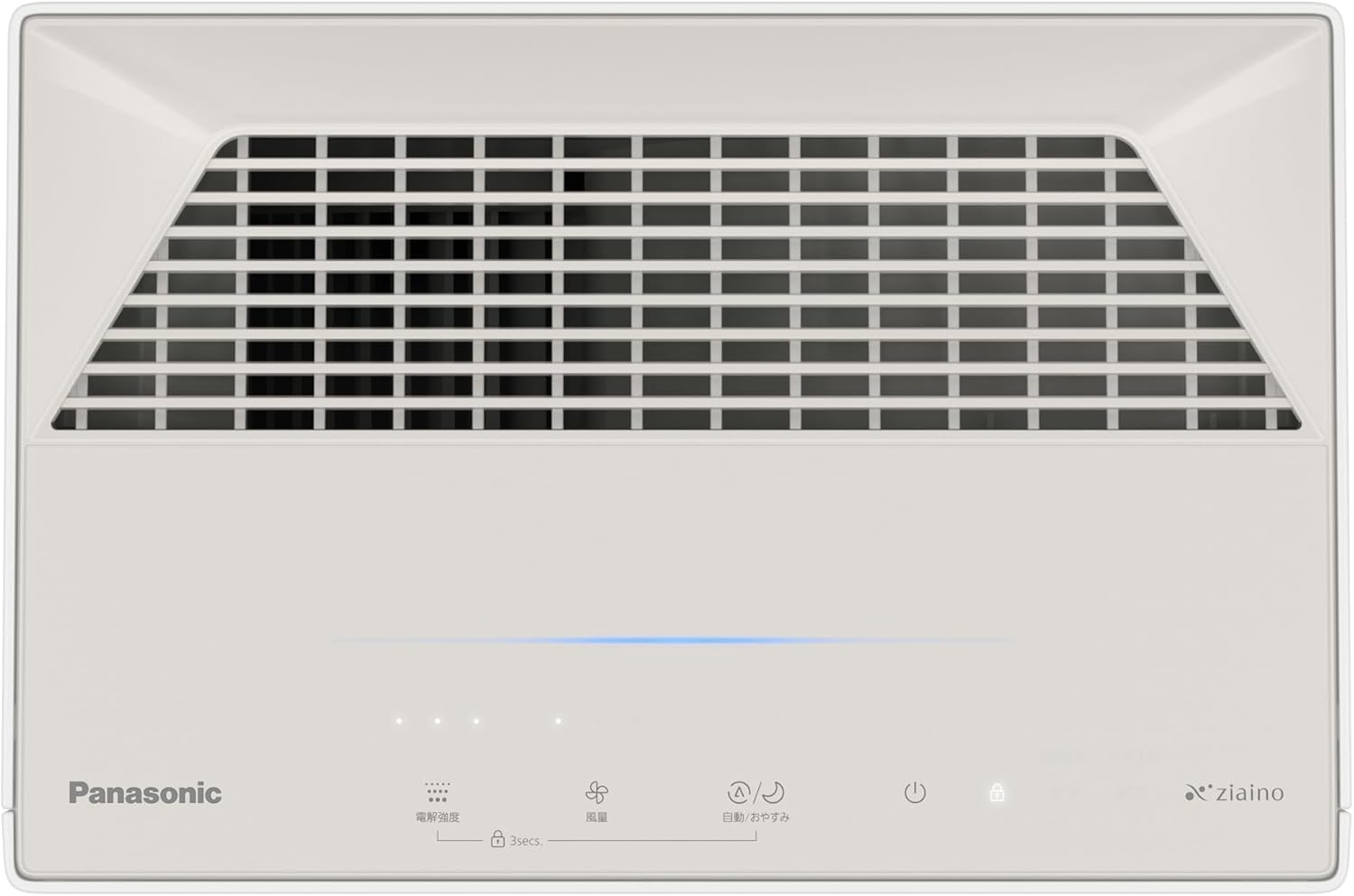

Şəkil 4: Üst view of the control panel with power, mode, and fan speed settings.
Use the buttons on the control panel to power on/off, adjust fan speed, and select operating modes. Refer to the icons on the panel for specific functions.
4.2 Sterilization Function
The unit effectively sterilizes both airborne and adhering bacteria and viruses using hypochlorous acid.
- Airborne Bacteria: Approximately 35 minutes for a 6-tatami (approx. 10m²) enclosed space.
- Adhering Bacteria: Approximately 12 hours for an 18-tatami (approx. 30m²) enclosed space.
Figure 5: Illustration of floating bacteria in the air, targeted by the unit.
Figure 6: Illustration of bacteria adhering to surfaces within a room, also targeted by the unit.
Figure 7: Graph illustrating the suppression effect of the unit on airborne viruses over time.
4.3 Deodorization Function
The Ziaino F-ML4000B provides continuous deodorization against persistent odors such as pet odors, care odors, raw garbage odors, drain odors, grilled fish odors, and sweat/body odors. It quickly deodorizes before odors permeate the room.
Figure 8: Visual representation of the deodorization effect on common household odors.
Figure 9: Graph showing the reduction of pet waste odor intensity after 175 minutes of operation.
Figure 10: The unit effectively deodorizes entrance odors, as shown in this example yerləşdirmə.
4.4 Dust Collection and Allergen Suppression
The unit also features a dust collection function, effectively capturing pollen and house dust. The protective element (HEPA filter) captures harmful substances, and some of the released hypochlorous acid suppresses captured pollen and allergens.
- Dust Collection Area: Up to 8 tatami (approx. 13m²).
- Pollen/Allergen Suppression: Effective against indoor pollen and allergens.
Figure 11: Illustration of the dust collection process, showing pollen and dust being captured.
Figure 12: Graph demonstrating the suppression of adhering pollen (cedar) over time.
5. Baxım
Regular maintenance ensures optimal performance and longevity of your Ziaino F-ML4000B. The water-related components require periodic cleaning.
- Weekly Drainage: Lightly drain the water from the unit once a week. This helps prevent buildup.
- Bi-Annual Thorough Cleaning: A thorough cleaning of the sterilization filter, water tray, and mold prevention unit is recommended once every six months.
- Prevent Slime Buildup: The unit is designed to suppress slime formation, but regular cleaning is still essential.
Figure 13: The removable water tray, designed for easy cleaning.
Figure 14: The unit's design incorporates features to suppress slime formation in the water tank.
Figure 15: The flat tray design minimizes indentations, making it easier to clean.
6. Giderme
If you encounter any issues with your Ziaino F-ML4000B, please refer to the following common problems and solutions:
| Problem | Mümkün Səbəb | Həll |
|---|---|---|
| Cihaz işə düşmür. | Power cord not properly connected; no power from outlet. | Elektrik kabelinin həm cihaza, həm də işləyən elektrik rozetkasına etibarlı şəkildə qoşulduğundan əmin olun. |
| Weak deodorization/sterilization effect. | Low water level; expired salt tablet; dirty filters/tray; unit placed in a very large or poorly ventilated area. | Check water level and refill if necessary. Replace salt tablet if needed. Clean the water tray and filters as per maintenance instructions. Ensure the unit is suitable for the room size. |
| Əməliyyat zamanı qeyri-adi səs-küy. | Obstruction in fan; unit not on a stable surface; internal component issue. | Check for any foreign objects obstructing the fan. Place the unit on a stable, flat surface. If the noise persists, contact customer support. |
| Su sızması. | Water tank not properly installed; tank damaged. | Ensure the water tank is correctly and securely inserted. Inspect the tank for cracks or damage. |
Bu həlləri sınadıqdan sonra problem davam edərsə, Panasonic müştəri dəstəyi ilə əlaqə saxlayın.
7. Spesifikasiyalar
Key technical specifications for the Panasonic Ziaino F-ML4000B:
| Xüsusiyyət | Detal |
|---|---|
| Model nömrəsi | F-ML4000B-W |
| Brend | Panasonic |
| Rəng | Ağ |
| Məhsulun Ölçüləri (D x G x Y) | 18.5 x 28 x 45 sm |
| Paket Ölçüləri | 50.4 x 34.4 x 22.4 sm |
| Maddə Çəkisi | 6.41 kq (Paket Çəkisi) |
| Güc mənbəyi | Kabelli Elektrik |
| Batareyanın istifadəsi | yox |
| Applicable Floor Area (Sterilization) | Up to 18 tatami (approx. 30m²) |
| Applicable Floor Area (Dust Collection) | Up to 8 tatami (approx. 13m²) |
8. Zəmanət və Dəstək
This product comes with a manufacturer's warranty. Please refer to the warranty card included in the packaging for specific terms and conditions.
- Genişləndirilmiş Qoruma: A 5-year accident protection plan is available for purchase (¥8160).
- Müştəri Dəstəyi: For technical assistance, troubleshooting, or warranty claims, please contact Panasonic customer service. Contact details can be found on the official Panasonic websaytda və ya məhsul sənədlərinizdə.
