1. Giriş
This manual provides instructions for the installation, operation, and maintenance of your Alpine HDZ-653 Status Series Hi-Res 6.5" 3-Way Component Speaker System and Alpine S-A32F 4-Channel Amplifier. This bundle is designed to deliver high-resolution audio performance in your vehicle. Please read this manual thoroughly before installation and use to ensure proper setup and optimal performance.
Məhsul Bitdiview
The Alpine HDZ-653 is a 6-1/2 inch three-way component speaker system engineered for high-resolution audio playback. It features a unified carbon composite cone construction for consistent sound reproduction across its 6.5-inch mid-bass driver, 3.5-inch midrange driver, and 1.25-inch high-range driver. The Alpine S-A32F is a compact and efficient 4-channel amplifier, providing 55 watts RMS per channel to enhance your audio system's output.
- High-Resolution Audio Clarity: The HDZ-653 is designed for detailed audio reproduction.
- Güclü və Səmərəli Ampömürlük: The S-A32F amplifier boosts speaker performance.
- Component Speaker System: Includes 6.5" woofer, 3.5" midrange, and 1.25" tweeter.
- Carbon Composite Cones: Utilized across speaker components for consistent sound.
- Geniş tezlik diapazonu: 55Hz-40kHz for accurate sound reproduction.
2. Təhlükəsizlik tədbirləri
Yaralanmaların və ya avadanlıqların zədələnməsinin qarşısını almaq üçün həmişə aşağıdakı təhlükəsizlik tədbirlərinə əməl edin:
- Hər hansı bir quraşdırmaya başlamazdan əvvəl avtomobilin mənfi batareya terminalını ayırın.
- Qısa qapanmaların qarşısını almaq üçün bütün naqillərin düzgün izolyasiya edildiyinə əmin olun.
- Mount components securely to avoid detachment during vehicle operation.
- Do not install components in locations that obstruct vehicle operation or safety devices.
- Quraşdırma prosesinin hər hansı bir hissəsinə əmin deyilsinizsə, peşəkar quraşdırıcı ilə məsləhətləşin.
3. Quraşdırma və Quraşdırma
Proper installation is crucial for optimal performance. This section outlines general installation guidelines. Specific vehicle requirements may vary.
3.1 Speaker Installation (HDZ-653)
The HDZ-653 is a 3-way component system consisting of woofers, midranges, and tweeters, along with external crossovers. Plan your speaker placement carefully for optimal sound staging.
- Woofer Placement: Install the 6.5-inch woofers in factory speaker locations in the doors or kick panels. Ensure adequate mounting depth and clearance.
- Midrange Placement: Install the 3.5-inch midranges in locations such as the dashboard, A-pillars, or custom door panels, ensuring they are securely mounted and aimed towards the listening position.
- Tweeter Yerləşdirmə: Install the 1.25-inch tweeters in locations that provide good imaging, such as A-pillars, dashboard corners, or flush-mounted in door panels.
- Krossover Şəbəkə: Mount the passive crossover networks in a dry, accessible location, away from heat sources and moisture. Connect the amplifier output to the crossover input, and then connect the woofer, midrange, and tweeter outputs from the crossover to their respective speakers. Observe correct polarity.
Image: Alpine HDZ-653 6.5-inch Woofer and 1.25-inch Tweeter. This image displays the main 6.5-inch woofer with its grille and a separate 1.25-inch tweeter, both featuring the Alpine logo.
Image: Alpine HDZ-653 3.5-inch Midrange Speaker. This image shows the 3.5-inch midrange speaker, designed to handle mid-frequency audio reproduction.

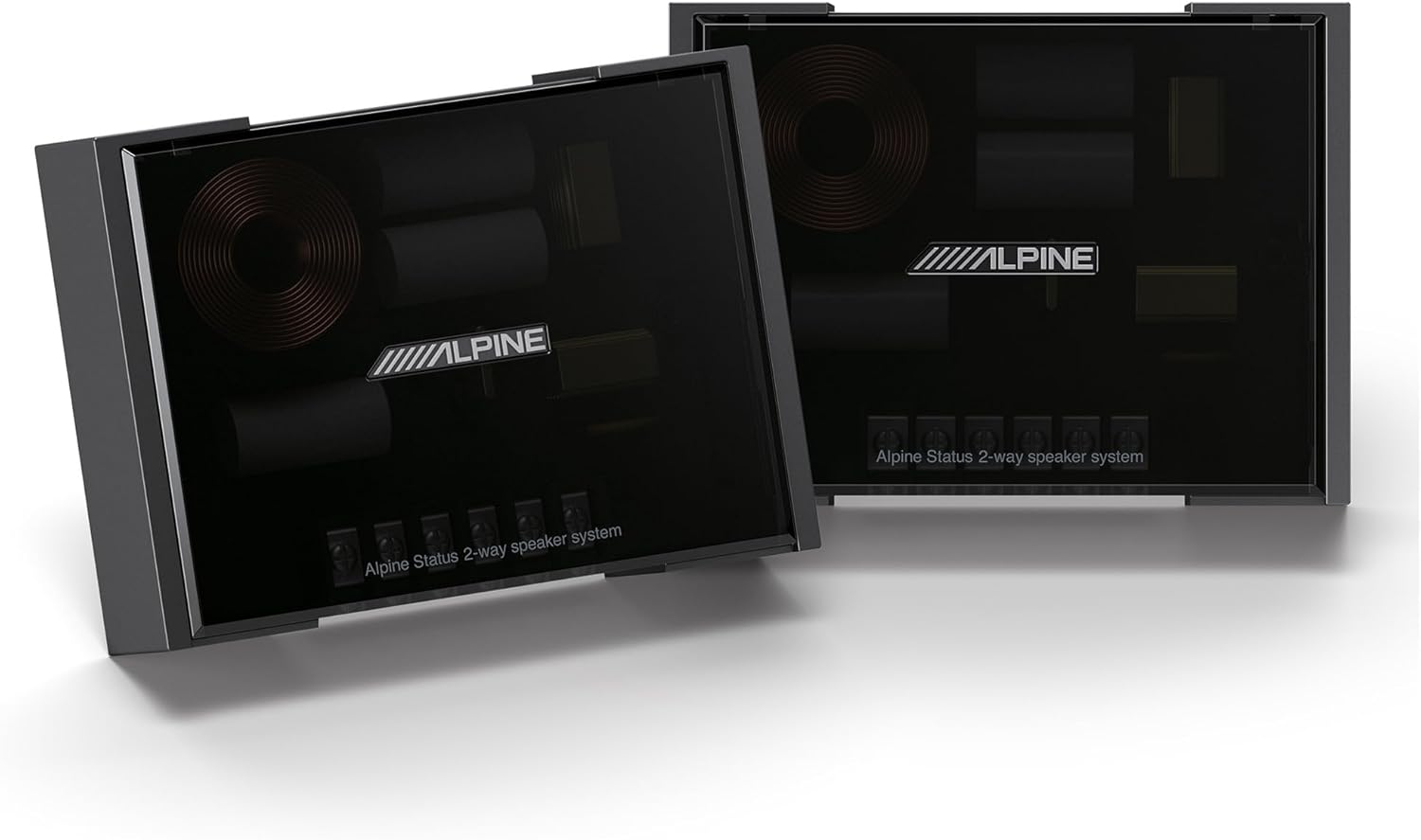

Image: Alpine Status 2-way Speaker System Crossovers. This image displays two passive crossover networks, essential for directing appropriate frequencies to each speaker component.
3.2 Amplifier Installation (S-A32F)
The S-A32F amplifier requires proper power, ground, remote, and audio signal connections.
- Quraşdırma yeri: Quru, yaxşı havalandırılan bir yer seçin amplifier, such as under a seat, in the trunk, or behind a panel. Ensure it is securely mounted to prevent movement.
- Elektrik naqilləri: Run a heavy-gauge power cable (e.g., 8 AWG) directly from the vehicle's positive battery terminal to the amplifier's BATT+ terminal. Install an appropriate fuse holder (40A recommended) within 18 inches of the battery.
- Torpaqlama Naqilləri: Connect a heavy-gauge ground cable (e.g., 8 AWG) from the amplifier's GND terminal to a clean, unpainted metal surface on the vehicle chassis. The ground point should be as short as possible.
- Uzaqdan yandırma: Baş blokunuzun uzaqdan çıxışından uzaqdan işə salınan teli birləşdirin ampqaldırıcının REM terminalı. Bu tel siqnal verir ampBaş cihazınızla yandırıb-söndürmək üçün qaldırıcı.
- Audio Giriş: Baş cihazınızın əvvəlcədən quraşdırılmış RCA kabellərini qoşunamp üçün çıxışlar amplifier's INPUT terminals (CH-1/2 and CH-3/4). If your head unit does not have RCA outputs, use a line output converter (not included) or the amplifier's speaker-level inputs if available.
- Dinamik Çıxışı: Dinamik naqillərini şəbəkədən birləşdirin amplifier's SPK OUT terminals to the inputs of the HDZ-653 crossover networks. Ensure correct polarity (+ to + and - to -) for all connections.
Image: Alpine S-A32F 4-Channel Ampqaldırıcı Üst View. This image shows the top casing of the Alpine S-A32F amplifier, featuring the Alpine logo.
Image: Alpine S-A32F 4-Channel Ampqaldırıcı tərəf View with Controls. This image displays the side of the S-A32F amplifier, showing the input level, gain controls, and filter switches for channels 1/2 and 3/4.
Image: Alpine S-A32F 4-Channel Amplifier Input and Output Terminals. This image shows the various connection terminals on the S-A32F amplifier, including RCA inputs, speaker outputs, and power/ground/remote terminals.
4. Əməliyyat Təlimatları
Once installed, configure your amplifier and head unit for optimal sound.
4.1 Amplifier Settings (S-A32F)
- Gain Control: Adjust the GAIN controls for Channel 1/2 and Channel 3/4. Start with the gain at minimum, then slowly increase it until the sound is clear and distortion-free at your desired maximum volume level from the head unit. Avoid setting the gain too high, as this can introduce distortion.
- Filter Switches: The S-A32F features selectable filters (OFF, HP, LP).
- HP (Yüksək Keçid): Use this setting for the HDZ-653 component speakers to filter out low frequencies that the speakers are not designed to reproduce, protecting them from damage and improving clarity. A common setting is around 80-100 Hz.
- LP (Aşağı Keçid): This setting is typically used for subwoofers. Do not use for the HDZ-653 speakers.
- QAPALI: Disables the filter. Use only if your head unit or external processor provides filtering.
- Tezlik Ayarı: Use the FREQ. knob to adjust the cutoff frequency for the selected filter (HP or LP).
4.2 Head Unit Settings
Refer to your head unit's manual for specific audio settings. Ensure that any internal amplifier settings or crossovers on your head unit are configured to complement the S-A32F amplifier and HDZ-653 speakers.
5. Baxım
Regular maintenance ensures the longevity and performance of your Alpine audio system.
- Təmizləmə: Təmizləmək üçün yumşaq, quru bir parça istifadə edin amplifier and speaker grilles. Avoid using harsh chemicals or abrasive cleaners.
- Əlaqələr: Periodically check all wiring connections for tightness and corrosion. Loose connections can lead to poor performance or damage.
- Havalandırma: təmin etmək ampİstiliyin düzgün yayılmasını təmin etmək üçün qaldırıcının soyutma qanadları toz və zibildən təmizlənib. Havalandırma dəliklərini bağlamayın.
- Ətraf Mühit Faktorları: Protect components from extreme temperatures, direct sunlight, and moisture.
6. Giderme
If you experience issues with your Alpine audio system, refer to the following common problems and solutions.
| Problem | Mümkün Səbəb | Həll |
|---|---|---|
| Dinamiklərdən səs gəlmir |
|
|
| Təhrif edilmiş səs |
|
|
| Bas və ya zəif bas yoxdur |
|
|
| Ampdaha uzun qızdırma |
|
|
7. Spesifikasiyalar
Detailed specifications for the Alpine HDZ-653 Component Speakers and S-A32F Ampömürlük.
Alpine HDZ-653 Component Speakers
- Dinamik növü: 3 Yollu Komponent Sistemi
- Woofer Ölçüsü: 6.5 Inches (Carbon Composite)
- Midrange Size: 3.5 Inches (Carbon Composite)
- Tweeter ölçüsü: 1.25 Inches (Carbon Composite Dome)
- Güclə işləmə (RMS): 100 Vt
- Güclə işləmə (pik): 300 Vt
- Tezlik diapazonu: 55-40,000 Hz
- Material: Carbon Composite, Plastic/Metal
- Məhsul Ölçüləri: 2.38"D x 6.38"W x 6.38"H (Woofer)
- Montaj növü: Door Mount (Woofer)
Alpine S-A32F 4-Channel Ampömürlük
- Kanallar: 4-Kanal
- RMS Güc Çıxışı: 55 Watts x 4 (into 4 ohms)
- Bağlantı texnologiyası: Speaker Wires (Input/Output)
- Səs Çıxış Rejimi: Stereo
- Nəzarət metodu: Touch (for settings adjustment)
- Daxil olan komponentlər: Zəmanət kartı
- Maddə çəkisi: Approximately 30 pounds (for the bundle)
8. Zəmanət və Dəstək
Zəmanət Məlumatı
This Alpine product bundle is covered by a Limited Warranty. Please refer to the included Warranty Card for specific terms, conditions, and duration of coverage. Retain your proof of purchase for warranty claims.
Müştəri dəstəyi
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Alpine customer support directly. Contact information can typically be found on the Alpine official websaytda və ya zəmanət sənədlərinizdə.
İstehsalçı: Alp
