RuoShui 500N Digital Force Dynamometer User Manual

Əhəmiyyətli Təhlükəsizlik Məlumatı

Please read these instructions carefully before using the RuoShui 500N Digital Force Dynamometer. Strictly adhere to all safety rules, cautions, and warnings provided in this manual to ensure safe and proper operation.

• Operate the device in an environment free from corrosive substances.
• Cihazı güclü elektromaqnit müdaxiləsi olan ərazilərdə istifadə etməkdən çəkinin.
• Ensure the power supply specifications match the device requirements.
• Cihazı sökməyə və ya dəyişdirməyə çalışmayın, çünki bu, zəmanəti ləğv edə və təhlükəsizlik riskləri yarada bilər.

Məhsul Bitdiview

The RuoShui 500N Digital Force Dynamometer is a portable, handheld device designed for precise force measurement. It features a clear LCD backlight screen for easy data reading and simple button operation. The ergonomic metal shell ensures durability and wear resistance. This dynamometer is equipped with a high-sensitivity sensor for fast and accurate measurements, supporting capacities from 2.2 ounces to 110 pounds (500N).

Əsas Xüsusiyyətlər:

• LCD displey: Large, easy-to-read LCD with backlight for clear data visibility.
• Yüksək Həssaslıq Sensoru: Ensures fast and accurate measurements.
• Çoxlu Vahidlər: Selectable units including LB, kg, and N.
• Pik tutma funksiyası: Captures and displays the maximum force measured.
• Sıfır funksiyası: Allows for tare or zeroing of measurements.
• Həddindən artıq yükləmə xəbərdarlığı: Display flashes to indicate an overload condition.
• Aşağı Batareya Göstərici: Alerts when the NI-MH battery is low.
• Avtomatik sönmə: Powers off after 10 minutes of inactivity to conserve battery.
• Yenidən doldurulan batareya: Powered by a 3.7V lithium battery with up to 15 hours of working time.

Paketin məzmunu

Aşağıda sadalanan bütün əşyaların paketinizdə olduğunu yoxlayın:

• 1 x Digital Force Meter (RuoShui 500N Dynamometer)
• 1 x Enerji Adapteri (ABŞ prizi)
• 6 x Measurement Accessories (various hooks and tips)
• 1 Pack x Mounting Screws
• 1 x İstifadəçi Təlimatı

Şəkil 1: The RuoShui 500N Digital Force Dynamometer shown with its power adapter and various measurement accessories, including hooks and tips, and mounting screws.

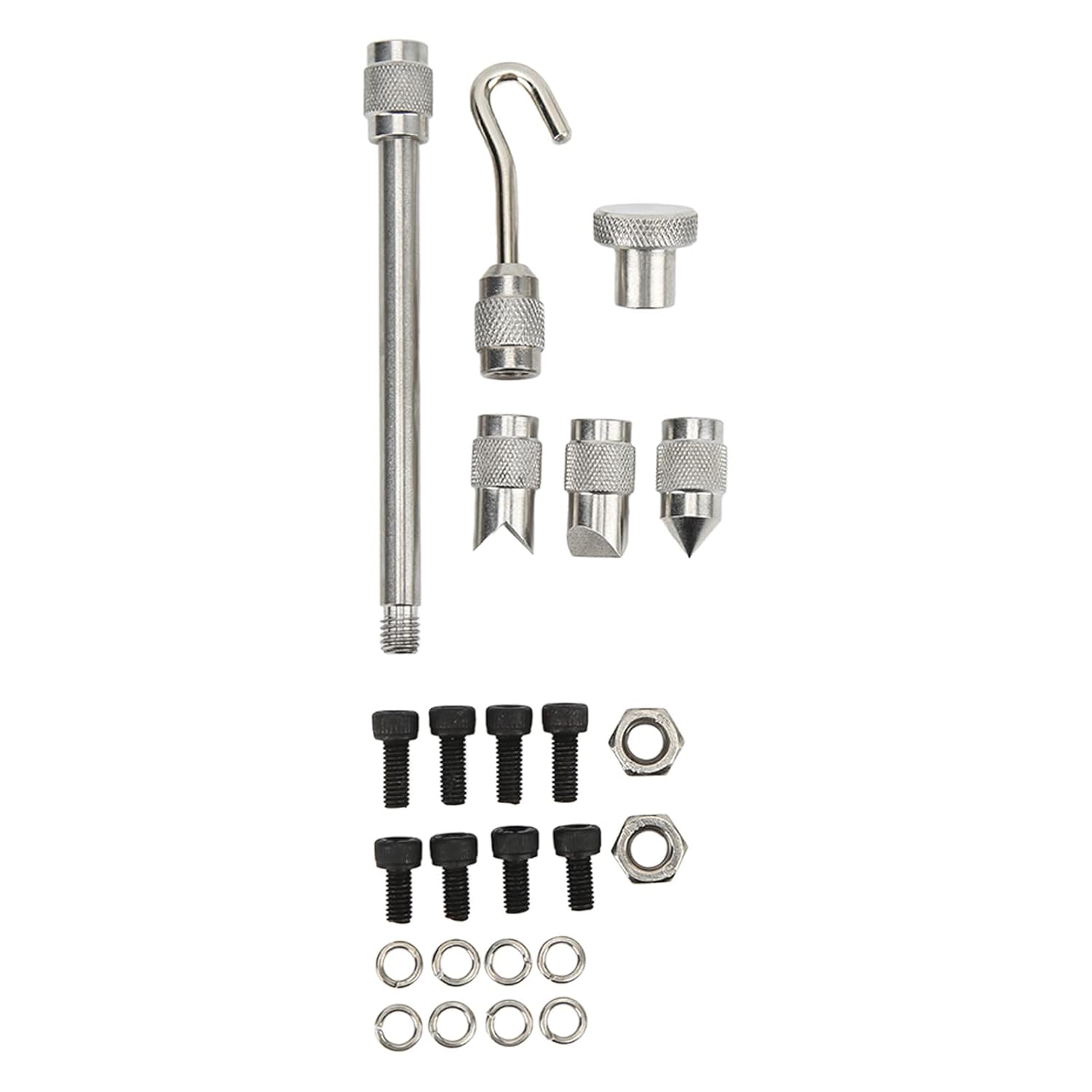

Şəkil 2: Ətraflı view of the six measurement accessories, including a long extension rod, a hook, a flat tip, a conical tip, and two chisel tips, along with mounting screws and washers.

Quraşdırma

1. Batareyanın doldurulması:

Before first use, fully charge the internal 3.7V rechargeable lithium battery. Connect the provided US plug adapter to the DC 5V 1000mA input port on the side of the dynamometer and plug it into a standard power outlet. Charging typically takes 4-6 hours. The battery life is rated for ≥300 charge cycles.

Şəkil 3: Yan view of the dynamometer, highlighting the 5V 1A charging port for connecting the power adapter.

2. Aksesuarların əlavə edilməsi:

Select the appropriate measurement accessory (hook, flat tip, conical tip, etc.) for your application. Screw the accessory securely onto the threaded shaft located at the top of the dynamometer.

Əməliyyat Təlimatları

1. Yandırma/Söndürmə:

• düyməsini basın OFF/ON cihazı yandırmaq üçün düymə.
• basın və saxlayın OFF/ON cihazı söndürmək üçün düymə.
• The device will automatically shut down after 10 minutes of idle operation.

Şəkil 4: Ön view displaying the LCD screen and control buttons (OFF/ON, UNIT, ZERO, SET), and back view showing the serial number and mounting points.

2. LCD Display Indicators:

The LCD screen displays various information during measurement:

• Ölçmə vahidi: Displays the selected unit (N, kg, or Lb).
• Tension/Compression Sign: Indicates the direction of the applied force.
• Battery Sign: Shows the current battery level. A flashing sign indicates a low battery.
• Həddindən artıq yükləmə xəbərdarlığı: The display will flash if the applied force exceeds the maximum load value (500N, 50kg, or 110Lb). Immediately reduce the load to prevent damage.

Şəkil 5: The dynamometer's front panel showing the LCD screen displaying a force reading of "500" in Newtons (N).

3. Unit Selection:

düyməsini basın BİRLİK button to cycle through the available measurement units: Newtons (N), kilograms (kg), and pounds (Lb).

4. Zero Function (Tare):

düyməsini basın SIFIR button to reset the current reading to zero. This is useful for taring out the weight of an attached fixture or for starting a new measurement from a baseline.

5. Peak Hold Function:

The device features a peak hold function. When activated (typically by pressing SET or a similar button, refer to the on-screen indicators), it will capture and display the maximum force applied during a measurement cycle. This value will remain on the screen until a higher peak is detected or the function is reset.

6. Alarm for Upper/Lower Value:

The dynamometer supports setting upper and lower force limits. If the measured force exceeds these limits, an alarm will sound (or a visual indicator will appear). Refer to the SET menu for configuring these alarm values. (Specific steps for setting alarm values are not detailed in the provided data, consult the included paper manual for advanced settings).

Baxım

• Təmizləmə: Cihazı yumşaq, quru bir parça ilə silin. Aşındırıcı təmizləyicilərdən və ya həlledicilərdən istifadə etməyin.
• Yaddaş: Store the dynamometer in a dry, cool place, away from direct sunlight and corrosive environments.
• Batareyaya qulluq: Recharge the battery regularly, even if not in use, to maintain its lifespan. Avoid fully discharging the battery for extended periods.
• Kalibrləmə: For professional applications requiring certified accuracy, periodic calibration by a qualified service center is recommended.

Problemlərin aradan qaldırılması

1. Low Battery Indicator:

If the battery sign on the LCD flashes, it indicates that the NI-MH battery is low. Connect the device to the power adapter and charge it immediately.

2. Overload Warning:

If the display flashes, it signifies that the applied force has exceeded the maximum load capacity of the dynamometer. Immediately remove the load to prevent damage to the sensor. Continuous overloading can permanently damage the device.

3. Device Not Powering On:

• Batareyanın kifayət qədər doldurulduğundan əmin olun.
• Verify that the power button is pressed correctly.
• If the device still does not power on after charging, contact customer support.

Spesifikasiyalar

Zəmanət və Dəstək

For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official Srliya websayt. Satınalma qəbzinizi zəmanət iddiaları üçün satınalmanın sübutu kimi saxlayın.
