DOOGEE V40 Pro 5G Rugged Smartphone User Manual

1. Giriş

This manual provides essential information for the safe and efficient operation of your DOOGEE V40 Pro 5G Rugged Smartphone. Please read it thoroughly before using your device to ensure proper setup, usage, and maintenance. The DOOGEE V40 Pro is designed for durability and high performance, featuring a Dimensity 7300 4nm 5G processor, a 200MP AI camera, an 8680mAh battery, and a 1.47-inch multi-functional rear screen.

2. Qutuda nə var

Məhsulun qablaşdırmasında bütün əşyaların olduğunu yoxlayın:

• 1 x DOOGEE V40 Pro Rugged Phone
• 1 x Type-C USB Kabel
• 1 x şarj cihazı
• 1 x Packing Box/ 1 x Manual

3. Məhsul bitdiview

The DOOGEE V40 Pro features a robust design with advanced functionalities. It includes a large main display and an innovative rear screen for quick access to information and controls.

3.1 Ön və arxa Views

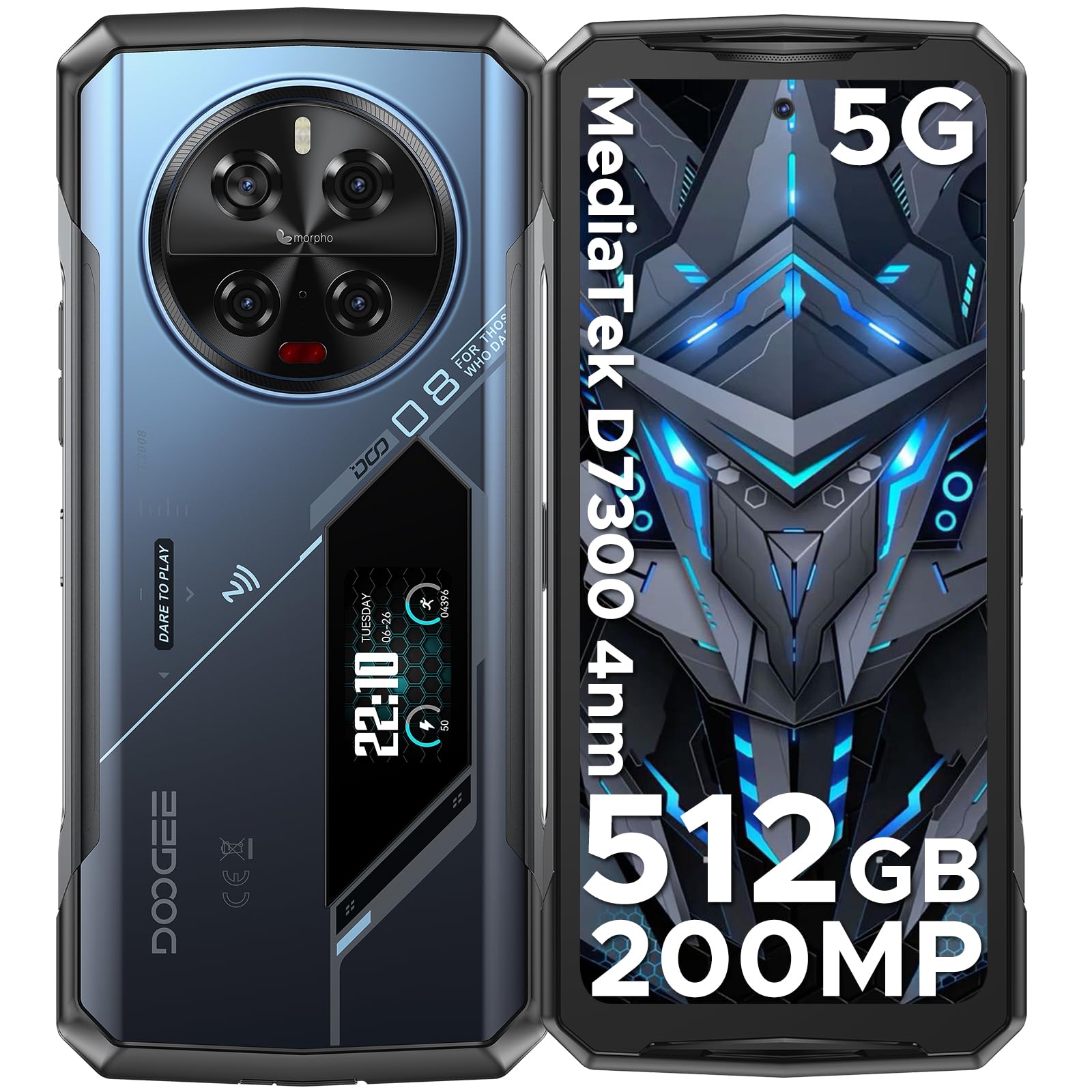

Şəkil təsviri: Hərtərəfli view of the DOOGEE V40 Pro, showcasing its front display and the unique rear panel with the camera module and secondary screen.

3.2 Əsas ekran

The device is equipped with a 6.78-inch FHD+ display offering a 120Hz dynamic refresh rate for smooth visuals and efficient power consumption.

Şəkil təsviri: The DOOGEE V40 Pro's main 6.78-inch FHD+ display, illustrating its vibrant screen quality.

3.3 Multi-functional Rear Display

A 1.47-inch secondary display on the rear provides quick access to essential information and controls without needing to activate the main screen. Functions include time, date, notifications, music control, and battery level.

Şəkil təsviri: A close-up of the DOOGEE V40 Pro's 1.47-inch rear display, showing various customizable widgets and information displays.

3.4 Kamera Sistemi

The device features a versatile camera setup, including a 200MP AI main camera with OIS, a 20MP night vision camera, an 8MP telephoto camera, an 8MP macro camera, and a 32MP front-facing camera.

Şəkil təsviri: Ətraflı view of the DOOGEE V40 Pro's circular rear camera module, highlighting its multiple lenses and flash.

4. Quraşdırma

4.1 SIM Card and TF Card Installation

To install your SIM card(s) and/or TF card (microSD card for expandable storage), locate the SIM tray on the side of the device. Use the provided SIM ejector tool to open the tray. Carefully place your nano-SIM cards and/or TF card into the designated slots, ensuring correct orientation. Close the tray securely.

4.2 İlkin işə salınma

Press and hold the Power button located on the side of the device until the DOOGEE logo appears. Follow the on-screen instructions to complete the initial setup, including language selection, network connection, and account configuration.

5. Əməliyyat Təlimatları

5.1 Əsas Telefon Funksiyaları

Navigate the Android 14 operating system using touch gestures. Swipe down from the top for notifications and quick settings. Use the volume buttons on the side to adjust audio levels. The power button can be configured for various actions, including screen lock/unlock and power options.

5.2 Using the Rear Display

The 1.47-inch rear display offers quick access to information and controls. Swipe left or right to cycle through different widgets such as time, date, battery status, music playback controls, and notification alerts. This display can also be used for enhanced selfie previews.

Şəkil təsviri: A person holding the DOOGEE V40 Pro, demonstrating the visibility and utility of the rear display.

5.3 Kameranın işləməsi

Open the Camera application to access the 200MP AI main camera, 20MP night vision camera, 8MP telephoto, 8MP macro, and 32MP front camera. Select different modes for photos, videos (including 4K recording), and special features like anti-shake and night vision. The rear display can assist with framing selfies using the main camera.

5.4 Performans və Oyun

The Dimensity 7300 4nm 5G processor and 36GB RAM (16GB physical + 20GB virtual) provide smooth performance for demanding applications and games. The DOOGEE OS 4.0 includes features like Game Mode Without Disturb for an uninterrupted gaming experience.

5.5 DOOGEE OS 4.0 Features

Experience enhanced user interface and features with DOOGEE OS 4.0, including App Cloning, Drama Mode (Video), and Dynamic Capsule for improved multitasking and user interaction.

6. Bağlantı

The DOOGEE V40 Pro supports a range of connectivity options:

• Şəbəkə: 5G connectivity. Supports AT&T, Verizon, T-Mobile. Not compatible with CDMA carriers such as Cricket, Sprint, Boost Mobile, Straight Talk, or U.S. Cellular.
• Wi-Fi: Wi-Fi 6 for fast and stable wireless internet.
• Bluetooth: Simsiz aksesuarları birləşdirmək üçün Bluetooth 5.2.
• NFC: Near Field Communication for contactless payments and data exchange.
• GPS: Integrated GPS with Beidou, Galileo, and Glonass support for accurate navigation.

7. Batareyanın idarə edilməsi

The DOOGEE V40 Pro is equipped with an 8680mAh battery, providing extended usage times. It supports 33W fast charging to quickly replenish power.

Şəkil təsviri: An illustration highlighting the large 8680mAh battery capacity of the DOOGEE V40 Pro.

7.1 OTG Reverse Charging

Utilize the OTG (On-The-Go) function to use your V40 Pro as a power bank to charge other compatible devices.

7.2 Intelligent Battery Management

The device features an intelligent battery management system with Ultra Power Saving mode to extend battery life when needed and an option to display battery percentagstatus çubuğunda e.

8. Möhkəm Xüsusiyyətlər

The DOOGEE V40 Pro is built to withstand harsh environments, certified with IP68, IP69K, and MIL-STD-810H ratings.

• IP68: Dust and water resistant up to 1.5 meters for 30 minutes.
• IP69K: Resistant to high-pressure, high-temperature water jets.
• MIL-STD-810H: Military-grade durability against drops, shocks, and extreme temperatures.
• Temperatur müqaviməti: Operates reliably in temperatures ranging from -40°C (-40°F) to +70°C (158°F).

Şəkil təsviri: The DOOGEE V40 Pro submerged in water and being dropped, illustrating its IP68/IP69K and MIL-STD-810H ruggedness ratings.

9. Spesifikasiyalar

10. Giderme

If you encounter issues with your DOOGEE V40 Pro, try the following steps:

• Cihaz işə düşmür: Ensure the battery is charged. Connect the phone to the charger and wait a few minutes before attempting to power on again.
• Cavabsız Ekran: Yenidən başlamağa məcbur etmək üçün Güc düyməsini təxminən 10-15 saniyə basıb saxlayın.
• Şəbəkə Bağlantısı Problemləri: Check if your SIM card is correctly inserted. Verify that mobile data or Wi-Fi is enabled. Restart the device.
• Proqram nasazlıqları: Close and reopen the problematic application. If the issue persists, clear the app's cache and data in Settings > Apps.
• Yavaş Performans: Close unnecessary background applications. Clear cache regularly. Consider a factory reset as a last resort (back up your data first).

11. Zəmanət və Dəstək

DOOGEE provides comprehensive support for your V40 Pro smartphone:

• 30 Günlük Pul Geri Zəmanəti: Satın aldığınız məhsuldan məmnun deyilsinizsə, 30 gün ərzində tam geri ödəmə tələb edə bilərsiniz.
• 2 illik Məhdud Zəmanət: Your device is covered by a 2-year limited warranty against manufacturing defects. Please refer to the warranty card included in the box for detailed terms and conditions.
• 24/7 Onlayn Dəstək: For any technical assistance or inquiries, contact DOOGEE customer service available 24 hours a day, 7 days a week.
