Motorola DLR1060 Digital Business Radio User Manual

Giriş

The Motorola DLR1060 is a 6-channel digital business radio designed for reliable and private communication in various professional environments. Operating in the digital 900 MHz ISM license-free band, this radio offers enhanced clarity and security compared to analog systems. Its compact and lightweight design, combined with robust features, makes it an essential tool for efficient team coordination.

Nə Daxildir

The Motorola DLR1060 package typically includes the following items:

• Motorola DLR1060 2-Way Digital Business Radio (quantity as per pack size)
• Şarj oluna bilən litium-ion batareya
• Charging Tray with Power Adapter
• Swivel Belt Holster
• User Guide and Safety Leaflet

Image: A typical 6-pack of Motorola DLR1060 digital business radios, showcasing the compact design of each unit.

Əsas Xüsusiyyətlər

• Digital 900 MHz ISM License-Free Band: Ensures private and reliable communication.
• Genişləndirilmiş Aralıq: Covers up to 300,000 square feet or 20 floors.
• 6 Kanal: Provides multiple communication lines for different teams or purposes.
• Səsli göstərişlər: User-friendly voice prompts for channel navigation, battery status, and feature customization.
• Radio Profile ID: Unique 4-digit ID for enhanced privacy and direct communication.
• Computer Programming Software (CPS): Allows for personalized setups, including Private Groups, custom channel names, and radio settings.
• Davamlı tikinti: Complies with Military Standards 810 C, D, E, F, and G for resistance against shock, vibration, extreme temperatures, and dust.
• Uzun Batareya Ömrü: Internal rechargeable battery provides up to 14 hours of continuous operation.
• Instant Mute: Quickly silence the radio when needed.
• Customizable Top Button: Assign frequently used functions for quick access.

Quraşdırma

1. Batareyanın doldurulması

1. Insert the rechargeable Lithium-Ion battery into the radio, ensuring it clicks securely into place.
2. Place the radio into the charging tray.
3. Connect the power adapter to the charging tray and plug it into a standard electrical outlet.
4. The charging indicator light on the tray will illuminate to show charging status. A full charge typically takes several hours.

Image: The Motorola DLR1060 radio securely seated in its charging cradle, ready for power connection.

2. Attaching the Belt Holster

1. Align the radio with the swivel belt holster.
2. Slide the radio into the holster until it locks into position.
3. Attach the holster to your belt or clothing for convenient carrying.

Əməliyyat Təlimatları

1. Gücü yandırın/söndürün

• Yandırmaq üçün düyməsini basıb saxlayın Güc/Menyu button (usually located on the top or side) until you hear a tone or voice prompt.
• Söndürmək üçün düyməsini basıb saxlayın Güc/Menyu button again until the radio shuts down.

Şəkil: Yan view of the DLR1060 radio, highlighting the power button and volume controls for easy access.

2. Səs səviyyəsinin tənzimlənməsi

• istifadə edin Səs artırma (+) və Səsin azaldılması (-) buttons on the side of the radio to adjust the listening volume.

3. Kanalın seçilməsi

• Döndürün Kanal seçmə düyməsi (typically on the top) to choose one of the 6 available channels.
• The radio will provide a voice prompt announcing the selected channel number.

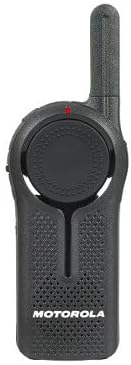

Şəkil: Ön view of the DLR1060 radio, featuring the prominent channel selector knob and integrated speaker.

4. Göndərmə və Qəbul

• Ötürmək üçün basıb saxlayın Push-to-Talk (PTT) radionun yan tərəfindəki düymə. Mikrofona aydın danışın.
• Cavab dinləmək üçün PTT düyməsini buraxın.
• Ünsiyyət qurmaq istədiyiniz şəxslə eyni kanalda olduğunuzdan əmin olun.

5. Private Communication (Radio Profile ID)

• The DLR1060 uses a unique 4-digit Radio Profile ID for private communication. This ID must be programmed into all radios intended for a private group.
• Refer to the Computer Programming Software (CPS) manual for detailed instructions on setting up and managing Radio Profile IDs and Private Groups.

Baxım

Cleaning the Radio

• Radionun xarici hissəsini yumşaq bir parça ilə silin, damp parça.
• Do not use harsh chemicals, cleaning solvents, or strong detergents, as these can damage the radio's casing və daxili komponentlər.
• Ensure the radio is powered off and disconnected from any charging accessories before cleaning.

Batareyaya qulluq

• Always use genuine Motorola batteries and charging accessories.
• Batareyanı həddindən artıq temperaturlara məruz qoymayın.
• If the radio will not be used for an extended period, store the battery separately in a cool, dry place.

Problemlərin aradan qaldırılması

Spesifikasiyalar

Zəmanət və Dəstək

For detailed warranty information and technical support, please refer to the documentation provided with your product or visit the official Motorola Solutions websayt. Satınalma qəbzinizi zəmanət iddiaları üçün satınalmanın sübutu kimi saxlayın.
